Function Range or value Accuracy
Maximum total recording time (3.4 s
recording time and maximum number
of channels, typical value)
340 seconds (100 recordings)
at 50 Hz, 280 seconds (80
recordings) at 60 Hz
-
Sampling rate 1 kHz at 50 Hz
1.2 kHz at 60 Hz
-
Recording bandwidth (5-300) Hz -
14.7 Logical signal status report BINSTATREP
GUID-E7A2DB38-DD96-4296-B3D5-EB7FBE77CE07 v2
14.7.1 Identification
GUID-E0247779-27A2-4E6C-A6DD-D4C31516CA5C v3
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Logical signal status report BINSTATREP - -
14.7.2 Functionality
GUID-A72E490D-01F7-4874-B010-8BDE38391D88 v3
The Logical signal status report (BINSTATREP) function makes it possible for a
SPA master to poll signals from various other functions.
14.7.3 Function block
GUID-BA0A5BC3-493B-4FE3-B4A9-14F60A88A22F v2
BINSTATREP
BLOCK
^INPUT1
^INPUT2
^INPUT3
^INPUT4
^INPUT5
^INPUT6
^INPUT7
^INPUT8
^INPUT9
^INPUT10
^INPUT11
^INPUT12
^INPUT13
^INPUT14
^INPUT15
^INPUT16
OUTPUT1
OUTPUT2
OUTPUT3
OUTPUT4
OUTPUT5
OUTPUT6
OUTPUT7
OUTPUT8
OUTPUT9
OUTPUT10
OUTPUT11
OUTPUT12
OUTPUT13
OUTPUT14
OUTPUT15
OUTPUT16
IEC09000730-1-en.vsd
IEC09000730 V1 EN-US

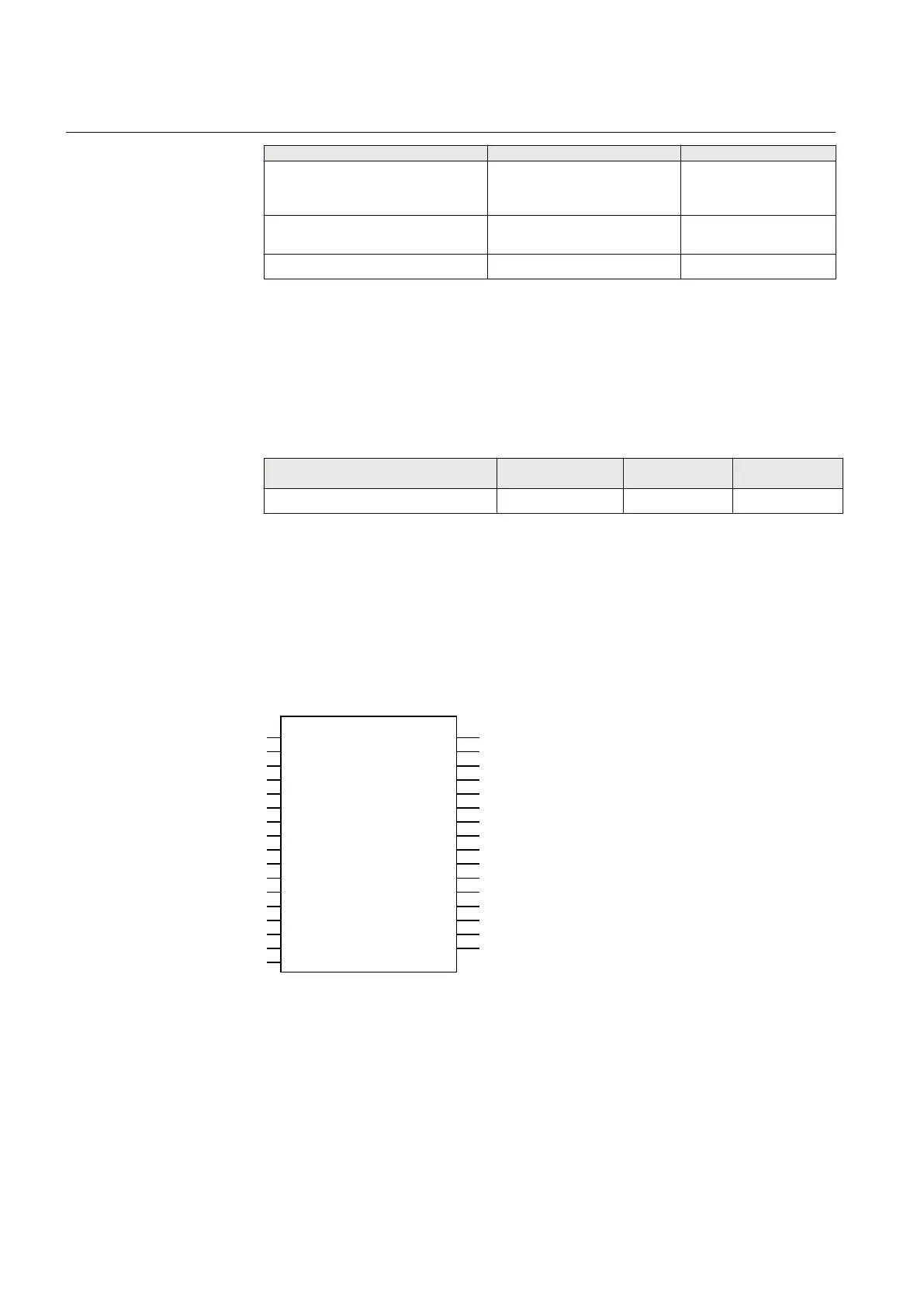

Figure 313: BINSTATREP function block
