IEC15000138 V1 EN-US

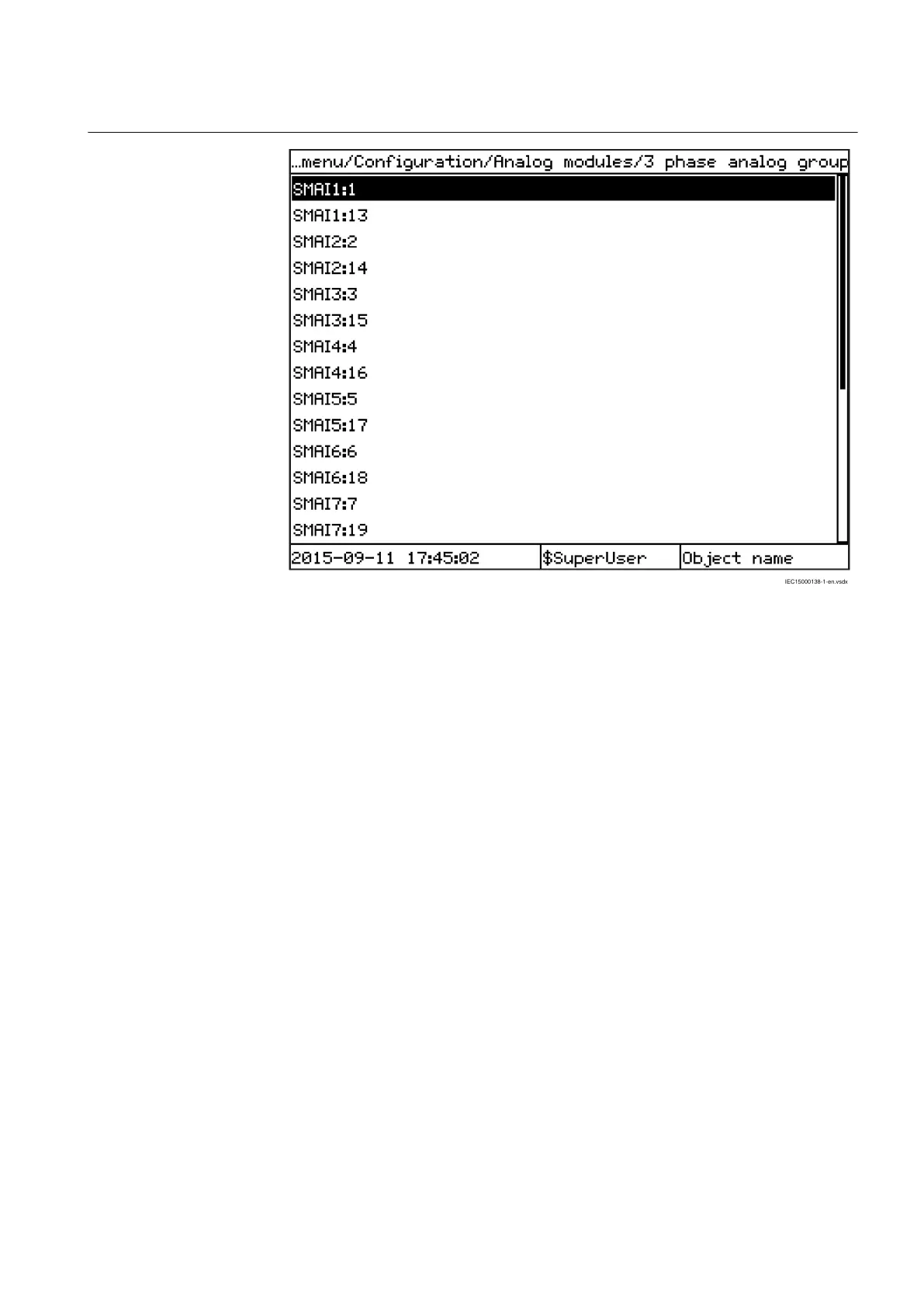

Figure 10: Truncated path
The number after : (colon sign) at the end of the function instance, for example, 1
in SMAI1:1, indicates the number of that function instance.
The function key button panel shows on request what actions are possible with the
function buttons. Each function button has a LED indication that can be used as a
feedback signal for the function button control action. The LED is connected to the
required signal with PCM600.
1MRK 506 382-UEN A Section 5
Local Human-Machine-Interface LHMI
Line distance protection REL650 2.2 IEC 73
Technical manual
