Removing the Inverter Board
1. See “Removing the Battery Pack” on page 46.
2. See “Removing the LCD Module” on page 66.
3. See “Removing the LCD Bezel” on page 96.

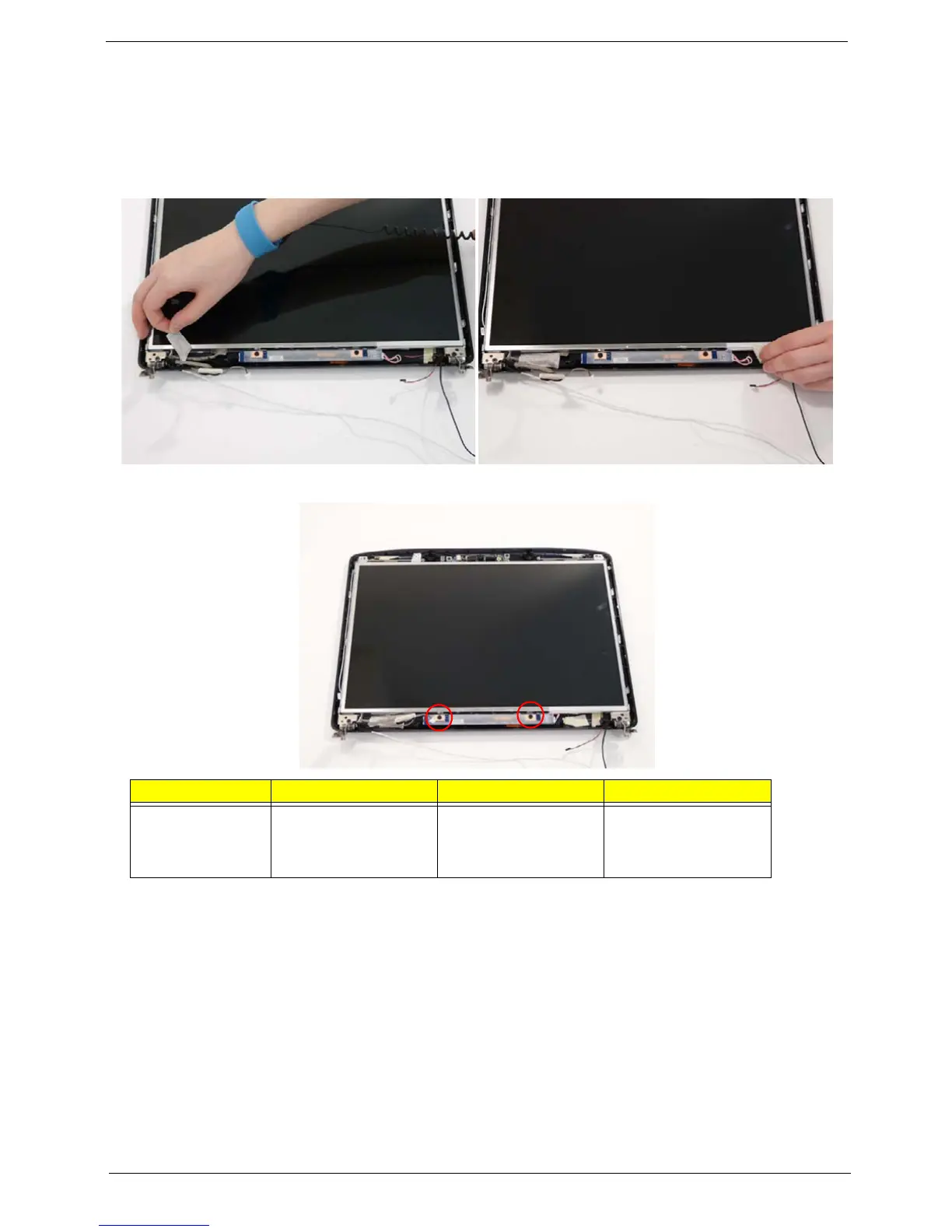

4. Remove the securing tapes from the left and right sides of the Inverter board as shown.
5. Remove the two securing screws from the Inverter board and lift the board clear of the LCD Module.
Step Size Quantity Screw Type
Inverter Board M2.5*6 (NL) 2
