Chapter 3 117

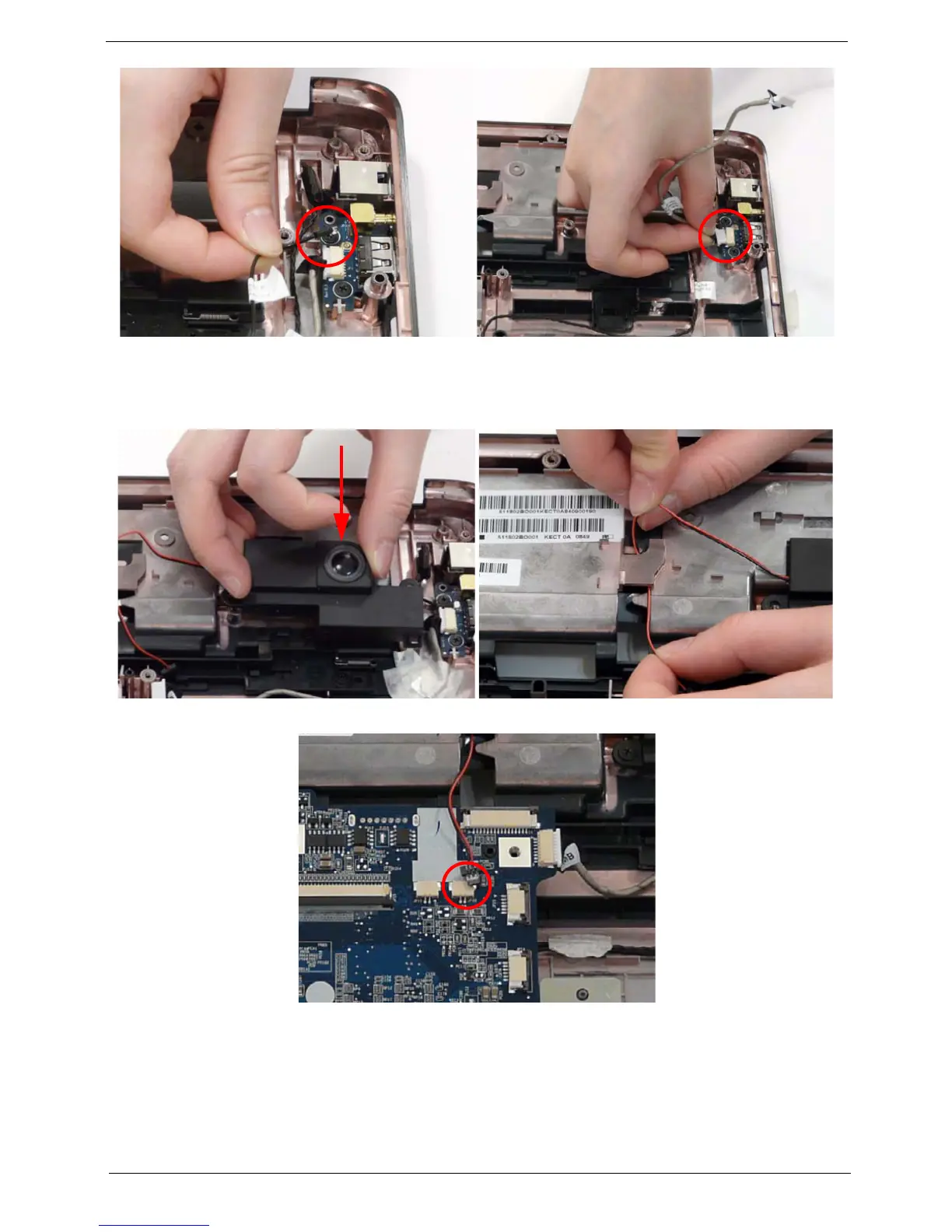

Replacing the Right Speaker Module
1. Replace the speaker module and insert the cable completely through the housing as shown.
2. Connect the speaker cable to the mainboard.
