Acer eMachines E720 Series - Replacing the LCD Bezel

Chapter 3 109

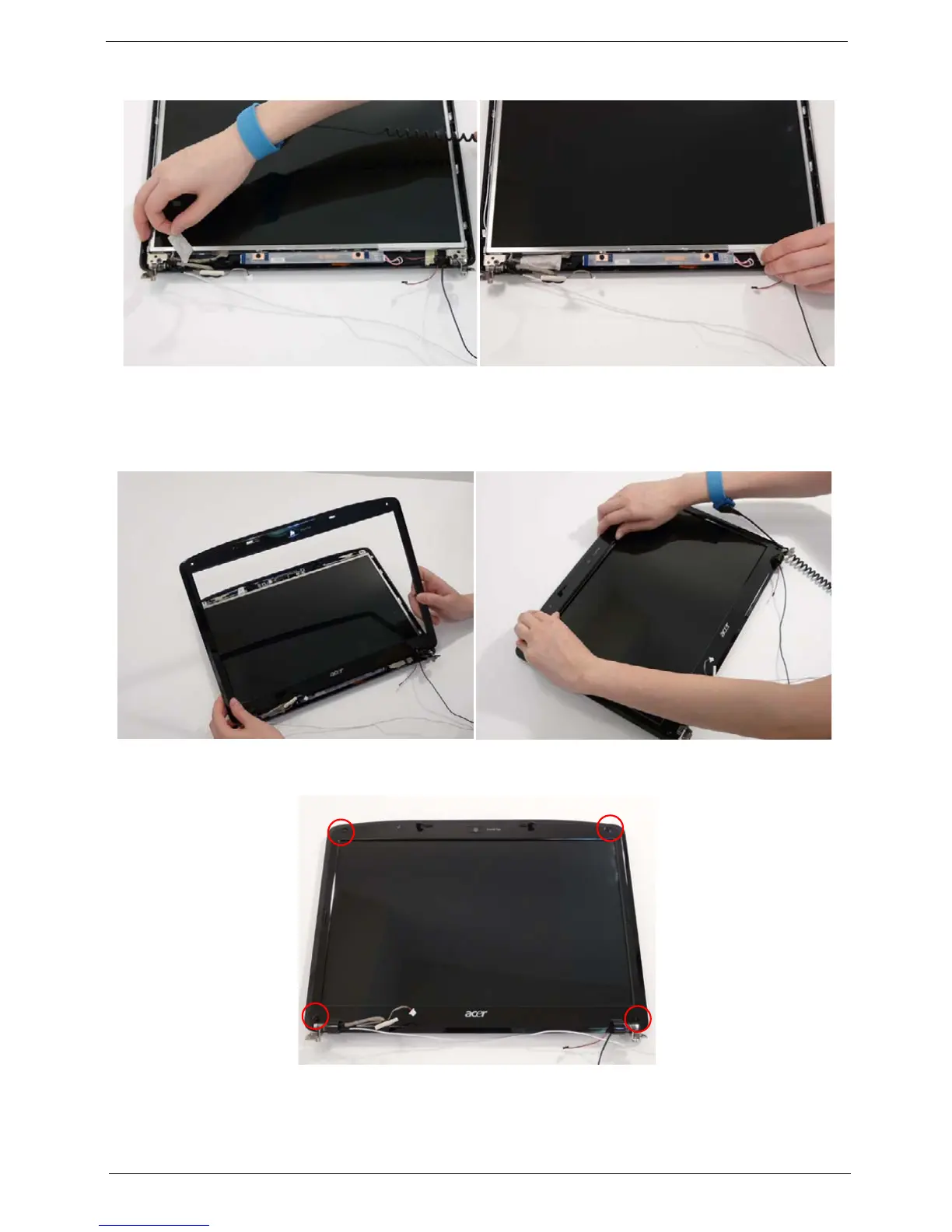

Replacing the LCD Bezel
18. Replace the securing tapes from the left and right sides of the Inverter board as shown.
NOTE: Tuck the cables securely to prevent damage to the cables or module.
1. Align the edge of the bezel with the bottom cover and replace the LCD Module.
2. Replace the two upper and two lower bezel screw caps. Remove the four securing screws from the LCD
module.
