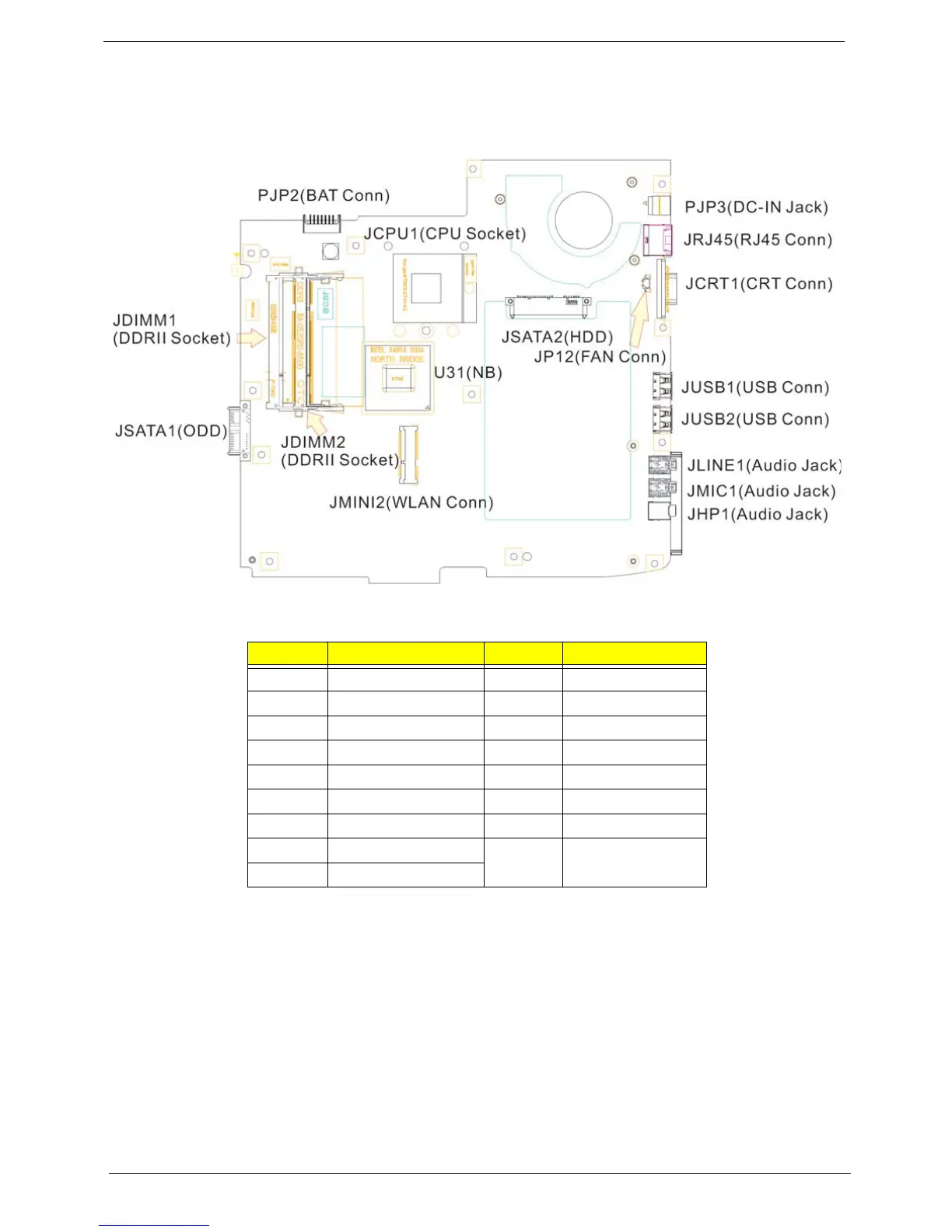

Bottom View
Item Description Item Description
JCPU1 CPU Socket JRJ45 RJ-45 Port
JCRT1 CRT Port JSATA1 ODD Connector
JDIMM1 DDRII Socket JSATA2 HDD Connector
JDIMM2 DDRII Socket JUSB1 USB1 Port
JHP1 Headphone Jack JUSB2 USB2 Port
JLINE1 LINE-IN Jack PJP2 Battery Connector
JMIC1 Microphone Jack PJP3 DC-IN Jack
JMINI2 WLAN Connector U31 Northbridge
JP12 CPU Fan Connector
