114 Chapter 3

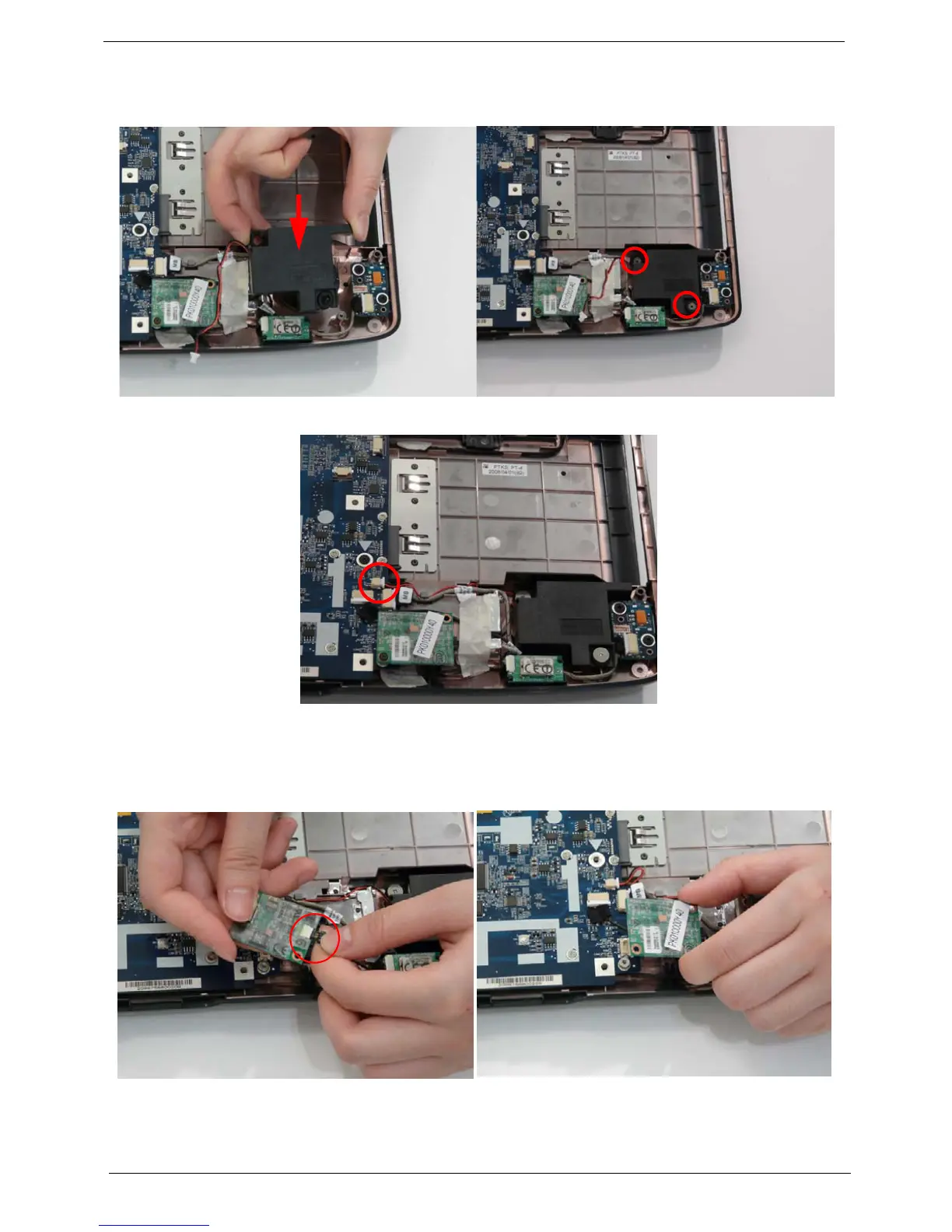

Replacing Subwoofer Module
Replacing the Modem Module
6. Locate the Subwoofer on the lower cover, and replace the two securing screws.
7. Connect the subwoofer cable as shown.
1. Connect the modem cable and locate it over the screw socket.
2. Insert module in mainboard.
