168 Chapter 6

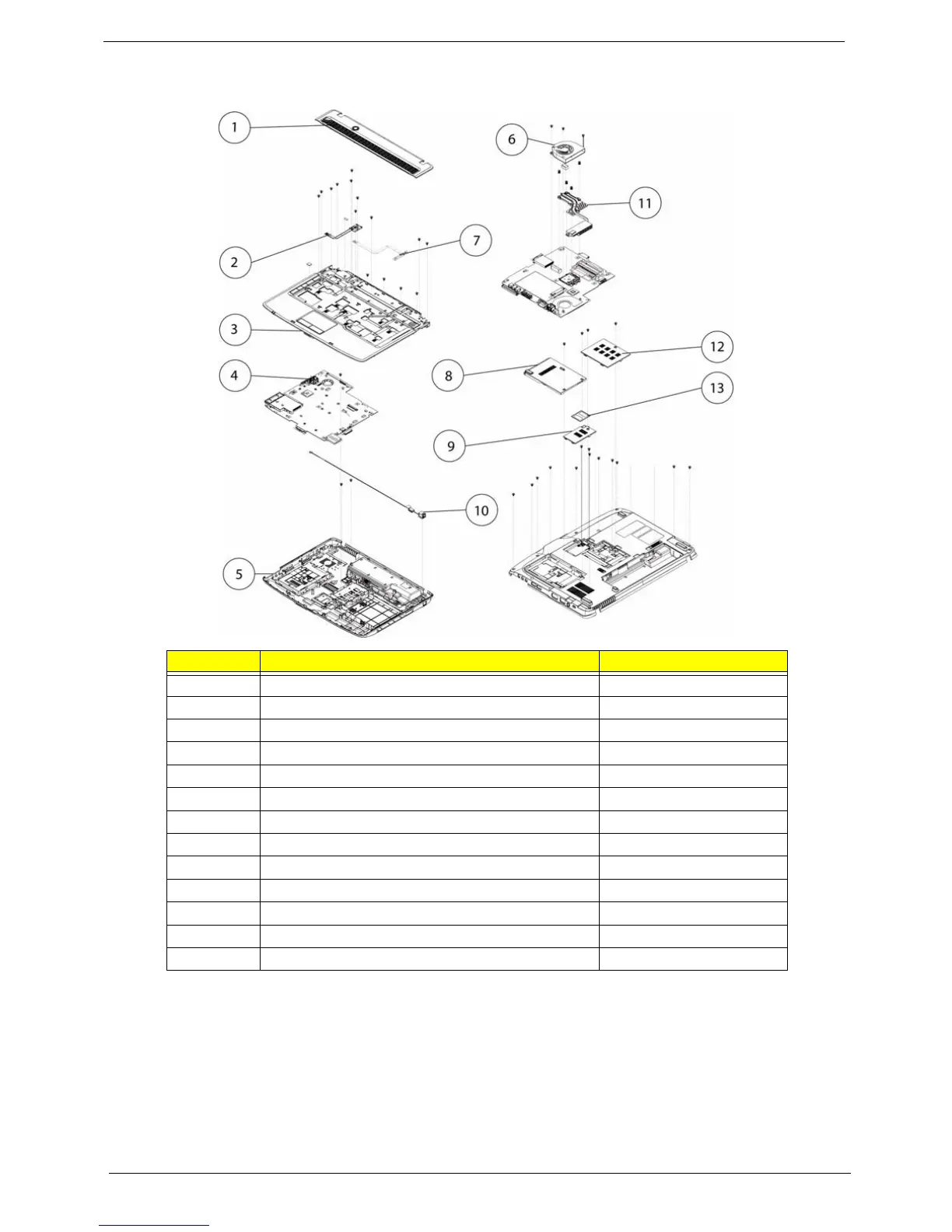

eMachines E720/E520 Exploded Diagram
Item Description Part Number
1 Middle Cover 60.N0502.001
2 Power Board 55.N0502.003
3 Upper Case 60.N0502.002
4 Mainboard MB.N0502.001
5 Lower Case 60.N0502.003
6 CPU Fan 23.N0502.001
7 Function Board 55.N0502.002
8 HDD Cover 42.N0502.003
9 Minicard Cover 42.N0502.001
10 Modem Cable 50.N0502.001
11 Thermal Module 60.N0502.007
12 Memory Cover 42.N0502.002
13 WLAN Module NI.23600.007
