136 Chapter 3

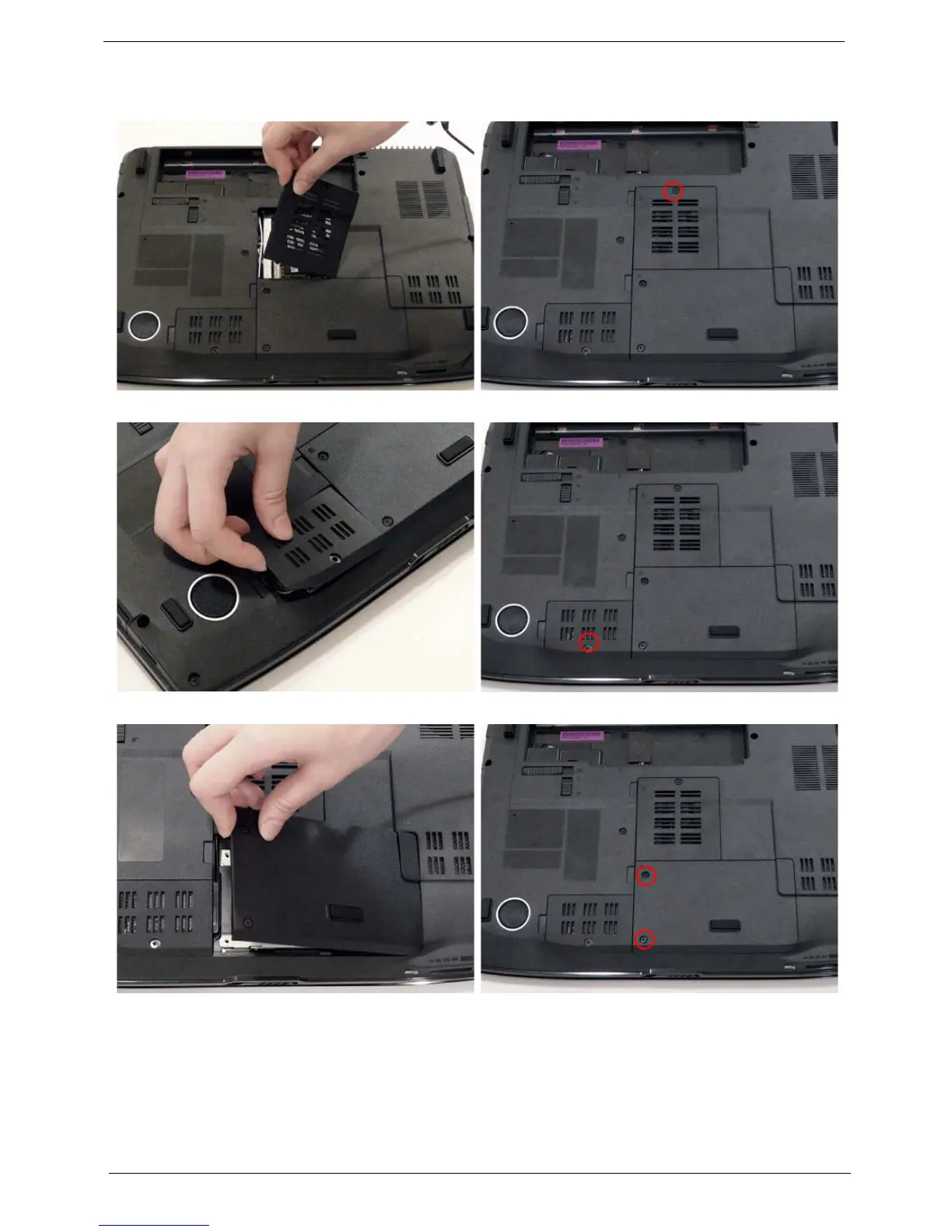

Replacing the Lower Covers
1. Replace the Memory Cover. 2. Replace the single screw to secure in place.
3. Replace the WLAN Cover. 4. Replace the screw to secure in place.
5. Replace HDD Cover. 6. Replace the two screws to secure in place.
