108 Chapter 3

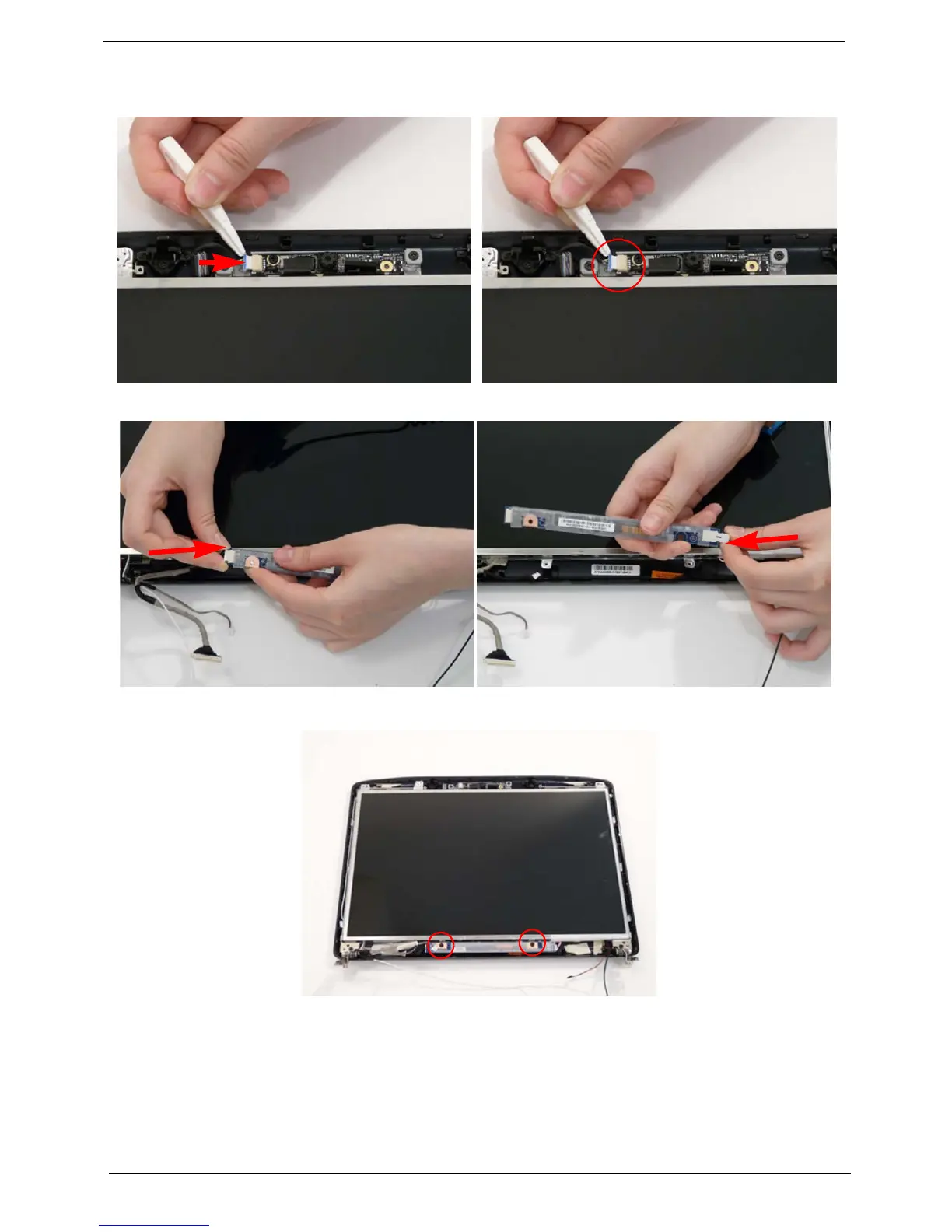

14. Connect the Camera Module cable as shown. 15. Connect the left and right Inverter board cables as
shown.
16. Connect the left and right Inverter board cables as shown.
17. Replace the inverter board and secure with the two provided screws.
