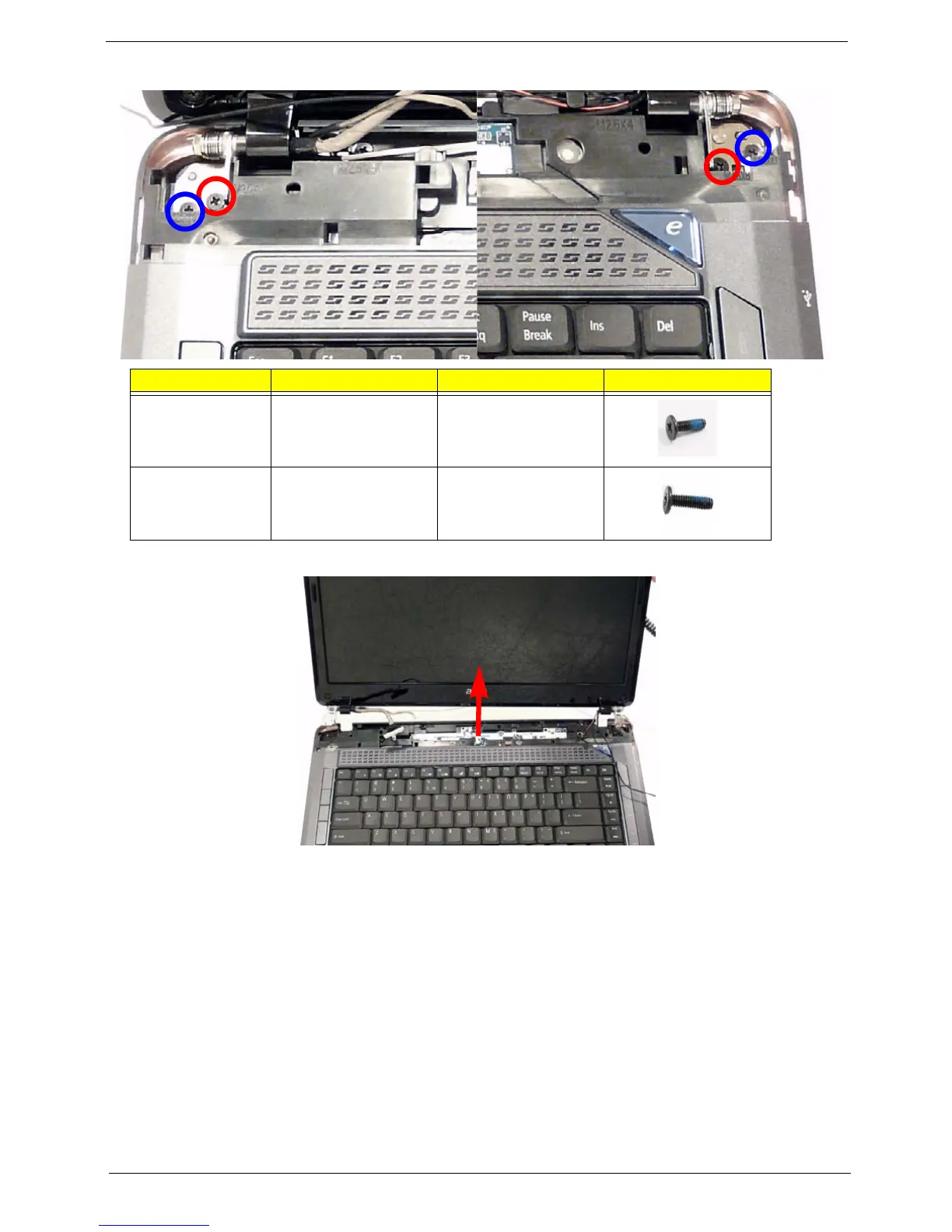

4. Remove the four securing screws (two on each side) connecting the LCD module.
5. Carefully remove the LCD module from the chassis.
Step Size Quantity Screw Type
LCD Hinges
(Red call out)
M2.5*6 (NL) 2
LCD Hinges
(Blue call out)
M2.5*8 (NL) 2
