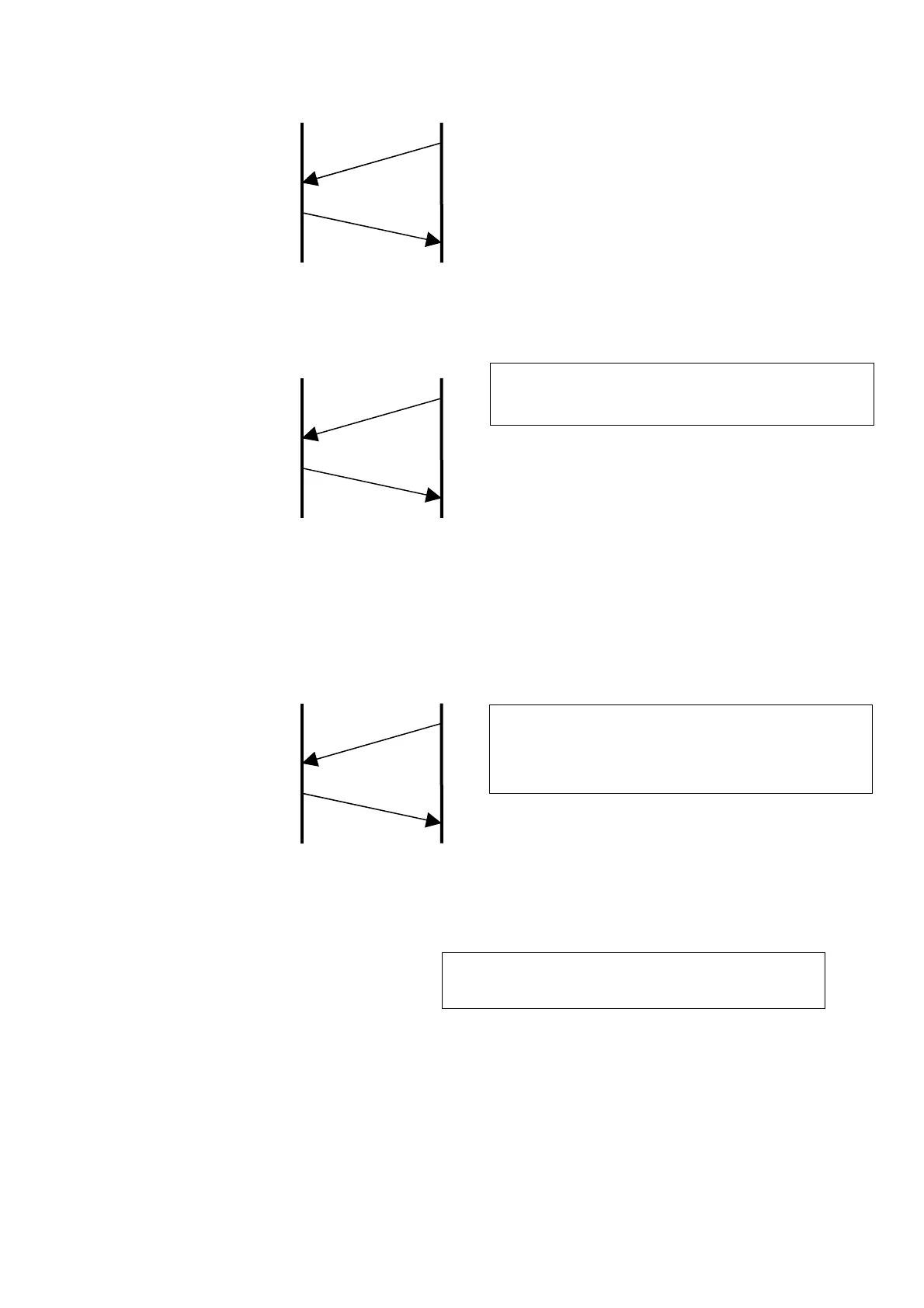

4)Getting instantaneous value :P
6236 PC
5)Measurement of L
Atm5
:M
6236 PC
6)
Measurement of L
Aleq
:Q
6236 PC
7)Output Waveform data :W ※Only 「Remote U」is supported.
W: transmit → data forward
＜ Data Contents ＞
The waveform of every 48kHz (sampling 20.8us) is continuously transmitted.
0000～FFFF ：0000 Negative maximum（8000／7FFF ：center）
：FFFF Positive maximum
As a result of A/D, “FFFF” has a range of +8 dB, so the maximum in the 100 dB
range is 108dB.
＜ Date contents ＞ ex. 43.0dB
5Byte+CR
20 34 33 2E 30 0D (43.0+CR)
data forward
Frequency weighting characteristic is fixed to
A, another it is the same as the section 3).
※ After this, inhibiting any other key access
than ”E” command.
・After time of MeasTime is passed , transmits
date for 5s from the start.
＜ Date contents ＞
00/01/05⊔02:15:16⊔F⊔130dB+CR+LF
000h00m10s+CR+LF
LAtm5⊔:⊔130.0+CR+LF
Fixed to frequency weighting characteristic is
A and time weighting characteristic is I,
another it is the same as the section 3).
※After this, inhibiting any other key access
than ”E” command.
q
16-bit binary A/D value output.
“E” command ends measurement.
