If there is only one waveform, it is marked as “E”
As it is possible to display only two registered waveforms at once, the button for opening another
waveform becomes blocked (does not respond to a mouse click) if two waveforms are already opened
(see Fig. 59).
This button becomes again activated if you delete one waveform (see Note to Fig. 64)

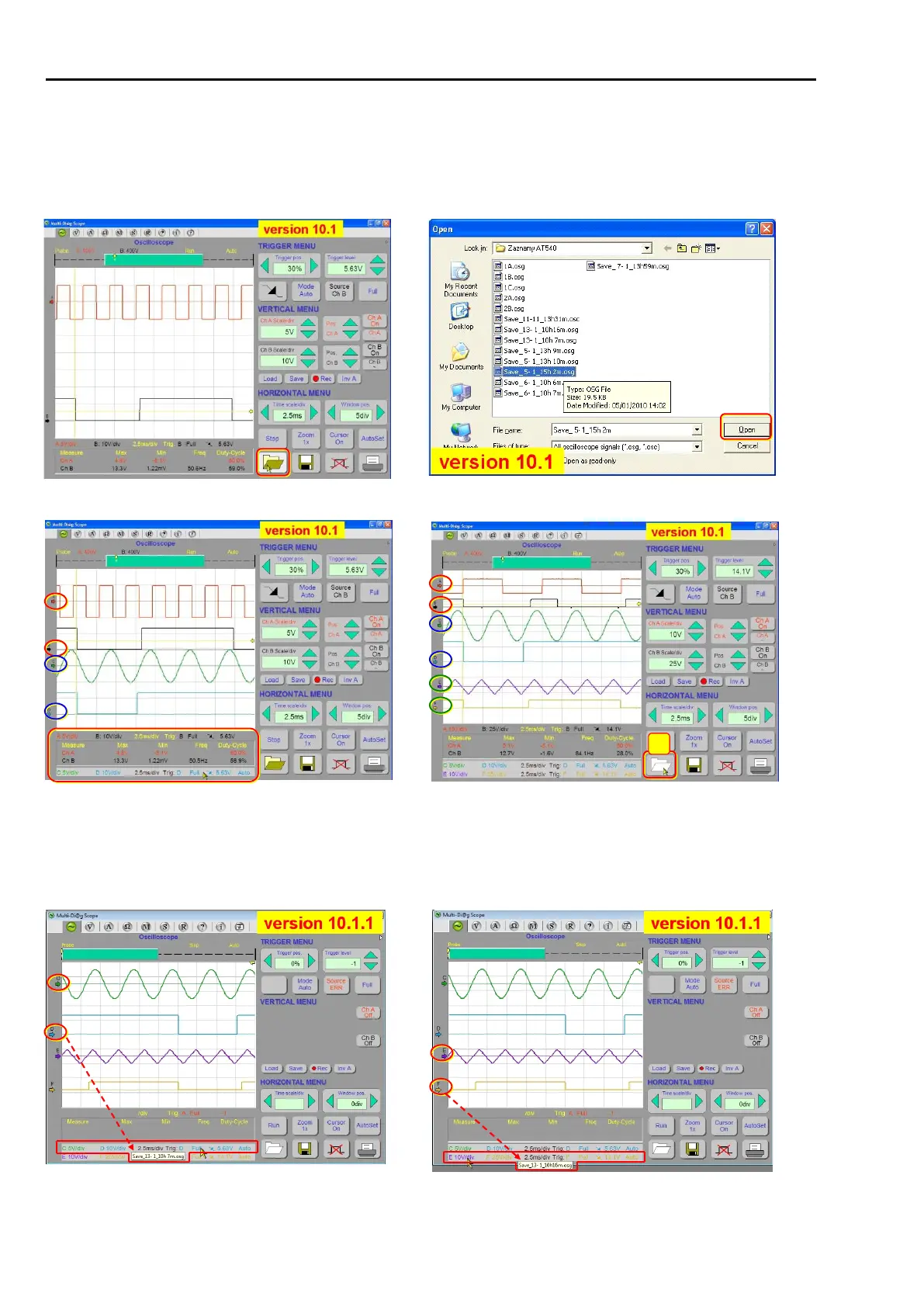

Fig. 56 – Waveform opening (figure applies to version 10.1)
Fig. 57 – Select the required waveform and open the file
Fig. 58 – When stored waveforms are displayed, the oscilloscope
setting for these waveforms will appear
Fig. 59 – When two stored waveforms are displayed yet, this button
is out of function (pos.1)
If you hover the cursor near the waveform parameters (see Fig. 58), the name of the currently displayed waveform
appears (see Fig. 60) to facilitate its identification. Since two waveforms always appear paired, the name of the
waveform always applies to the specific pair.
Fig. 60 – The displayed name of the waveform always applies only to one pair
