Adixen ASM GRAPH - Page 122

C 301
Basic internal calibration of the leak
detector
4 / 5
PLEASE,OPEN He LEAK
LEAK VALUE:
1.0E-07
EXT θ (°C/°F):20/68
OK -> press NEXT
GB 00969 -
Edition
06 -
June
08
3

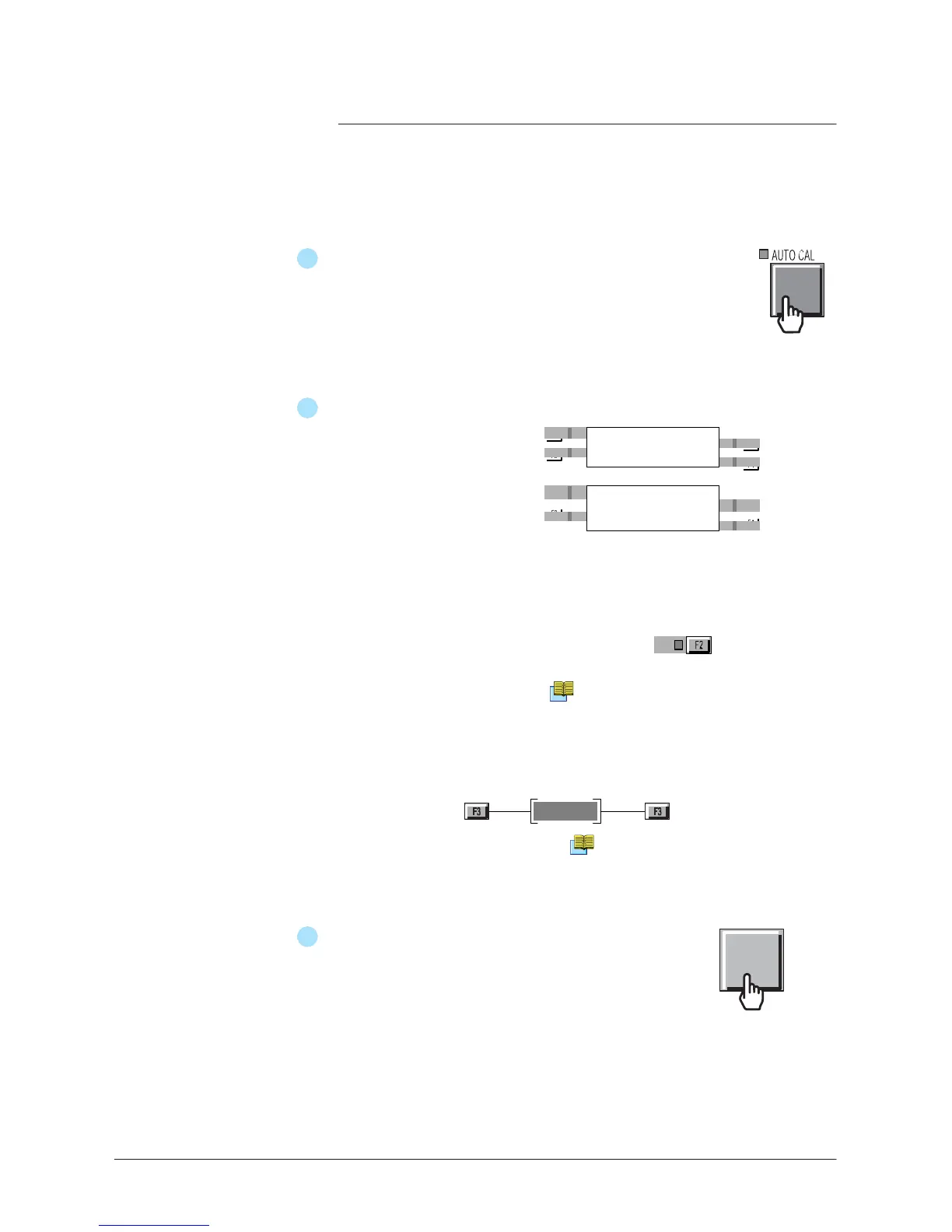

Start the  Place the external calibrated
calibration leak on the
test por t.
Start the calibration.
4
Calibration
preparation
These 2 screens appear alternately.
ON TEST PORT!
Leak value: 1.0E-07
EXT θ (°C/°F):20/68
OK -> press NEXT
Note: If the operator press ,all the
parameter of the programmed calibrated leak are
displayed.
C 305
Open the valve of the calibrated leak (if there
i s one).
Set the ambiant temperature.
Adjustment
C 110
5
Validate the
calibration
process
NEXT
Different screens appear during the process giving
internal
parameters values.
