Alcatel Vacuum Technology France - User's Manual ASM 142 D

TRM DB02 03/2009

F 200

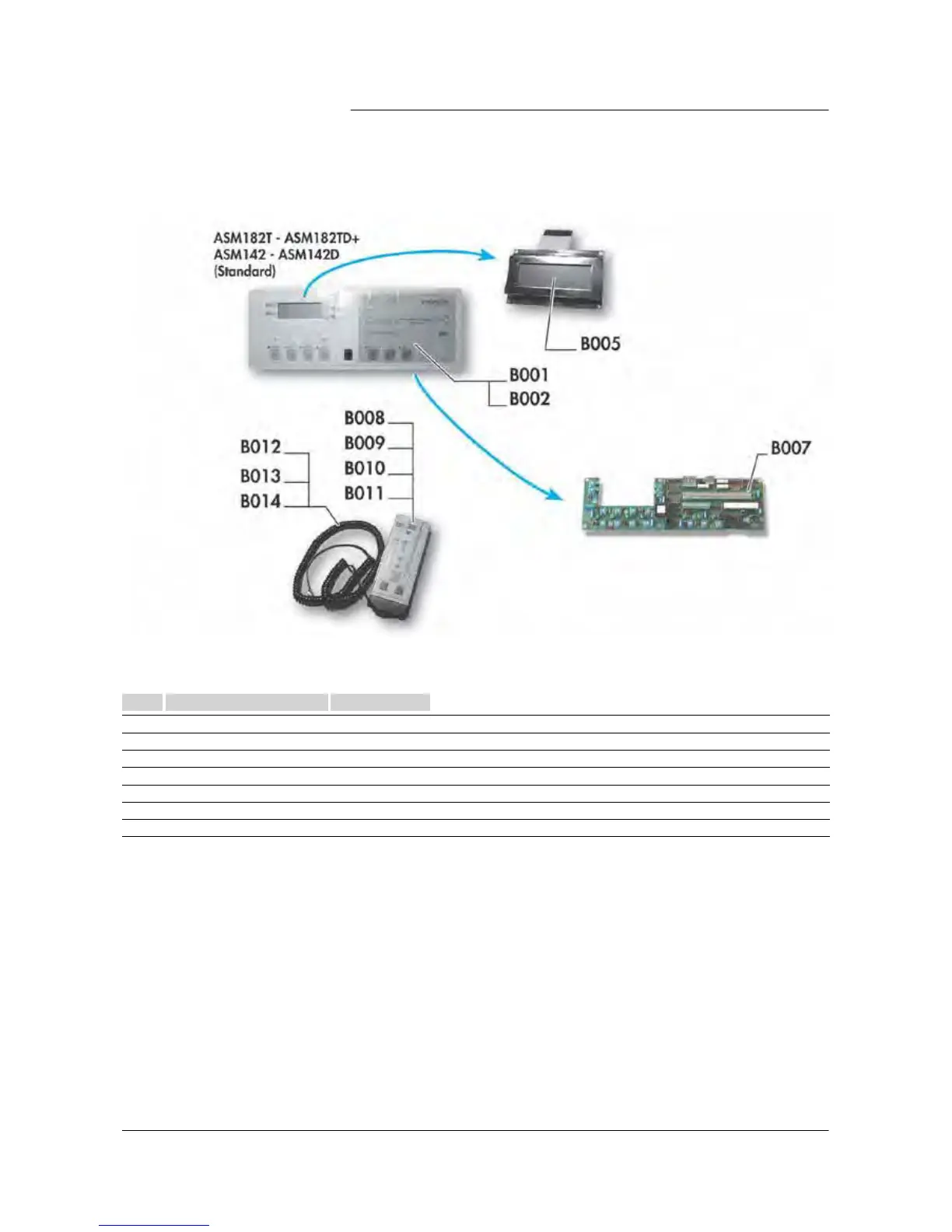

Monitoring and display

ASM 142 D

Ref

Descriptio n

P/N

Qty

Remarks

B001

CONTROL PANEL EUR/US - 142/182

A459292

B002

CONTROL PANEL JAPAN - 142/182

A459293

B005

LCD DISPLAY + WIRING HARNESS - 142/182

B007

P0335E1 CONTROL PANEL BOARD - 142/182

B012 CABLE FOR REMOTE CONTROL 2G, 5 M

A458735

B013

CABLE FOR REMOTE CONTROL 2G, 10 M

110881

B014

CABLE FOR REMOTE CONTROL 2G, 15 M

110882

* Contact customer services
