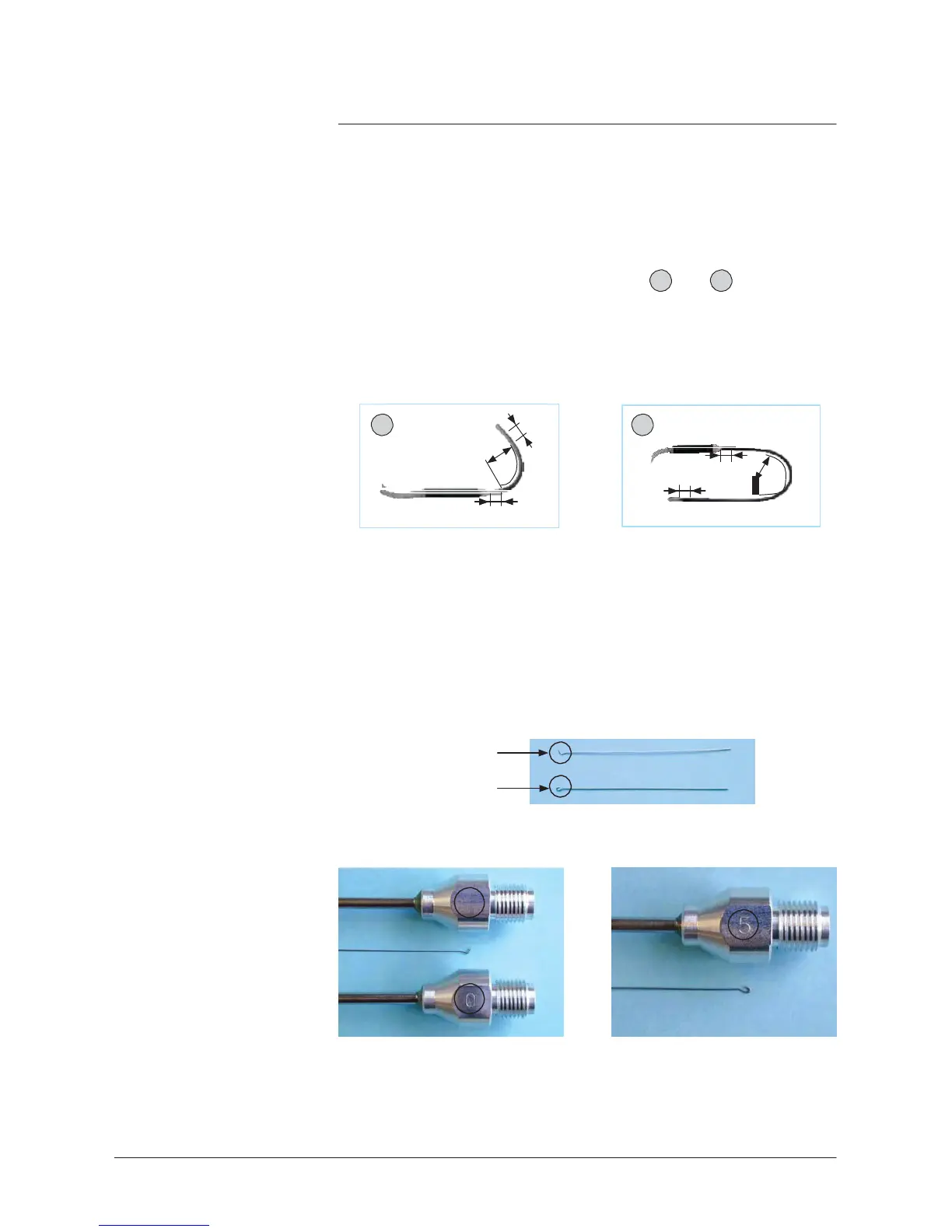

Use precautions
with the flexible
sniffer probe
The
sniffer probe nipple can be bent if
necessary
but you
should
respect
a minimum radius of curvature (ref. 4 and 5 ).
(continued)
Sniffer probe with a
flexible
nipple of 15 cm
/
5.9
inch
(part number
SNCxE3Tx)
Sniffer probe with a
flexible
nipple of 45 cm
/
17.7
inch
(part number
SNCxE4Tx)
4
E
5
R
E
R
E
E
R
> 5 cm (2 inch)
E
> 2 cm (1 inch): do not twist/bend the
E
section
Flow adjustment
In order to adjust the flow inside the sniffer probe, it
comes
equipped
with 2 needle types: dia. 0.30 mm (0.11 inch) or 0.35 mm
(0.14 inch).
This
choice is done in factory and it is permanent.
How to identify the needle
set
in your snifffer probe?
The
needle shape is different:
•
Ø 0.30 mm needle
•
Ø 0.35 mm needle
The
sniffer probe nozzle is marked:
Sniffer
probe equipped with a
dia. 0.30 mm needle has no mark
or is marked
“0”.
Sniffer
probe equipped with a
dia. 0.35 mm needle is marked
“5”.
3
/8
