Bearing opposite
the pumping cell
Introduce
the syringe equipped with its needle into
the bearing and
remove
the red jumper.
Always position the syringe
needle
between two balls of the
bearing so as not to damage the bearing.
Distribute
the dose of grease in 2 diametrically
opposed points, until the
syringe
plunger
comes
to
a stop against the black jumper.
Bearing on
pumping
cell
side
3

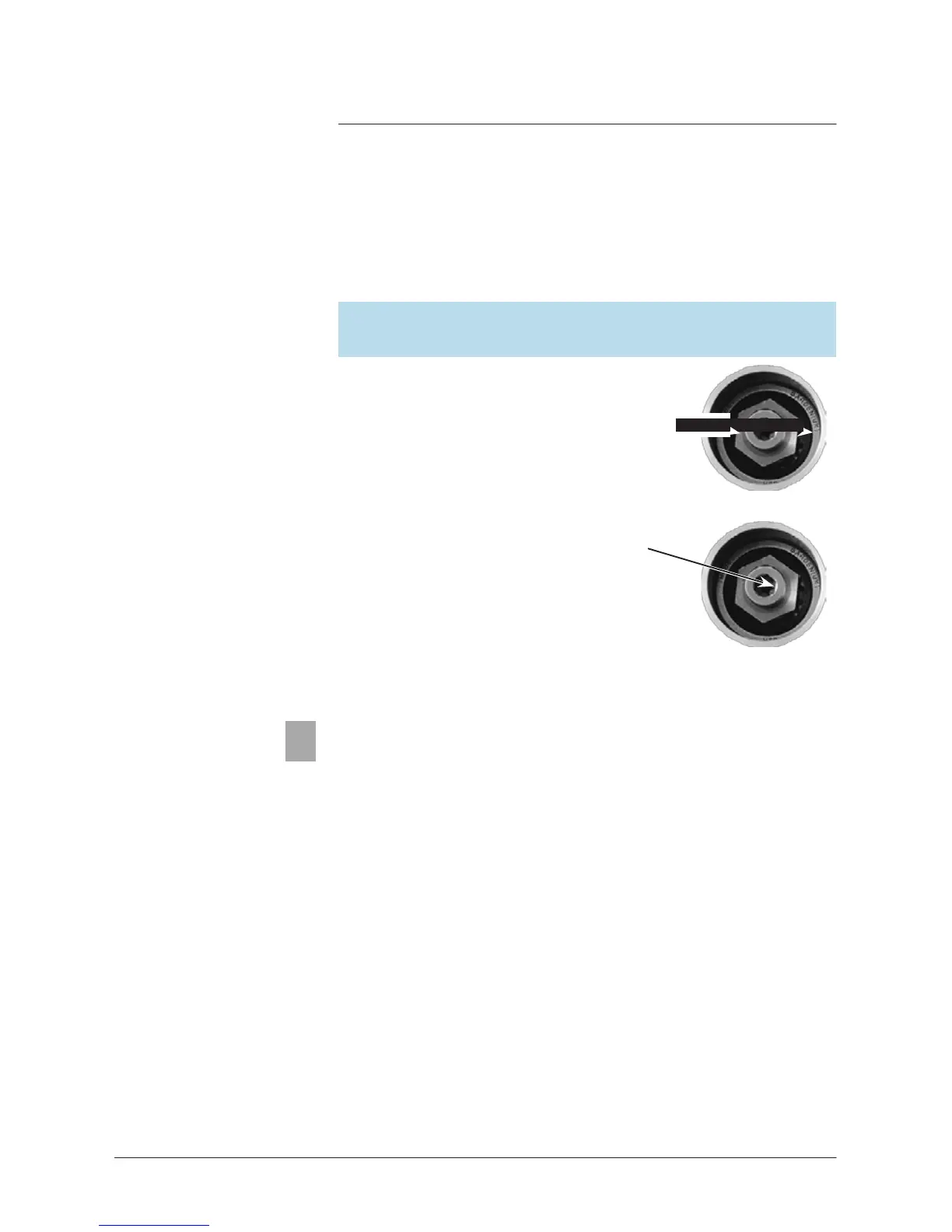

Introduce
the lubrication syringe needle
into the drilled screw located at the center
of the rotor until it
comes
to a stop against
the screw head.
Keep the syringe
pressed
down to the bottom of
its housing
throughout
the operation.
Remove
the black jumper from the syringe and
introduce the grease until the plunger
comes
to a stop.
Remove
the syringe.
Reassemble
the
adjustment sleeve
(taking care with the direction),
the spring and the end cap with its o-ring.
The
relubrication operation is complete.
Execute
the pump running-in.
