E 111
Access to the internal components
ASM 142 D - ASM Graph D+
GB 01490
-
Edition 03
- June
08

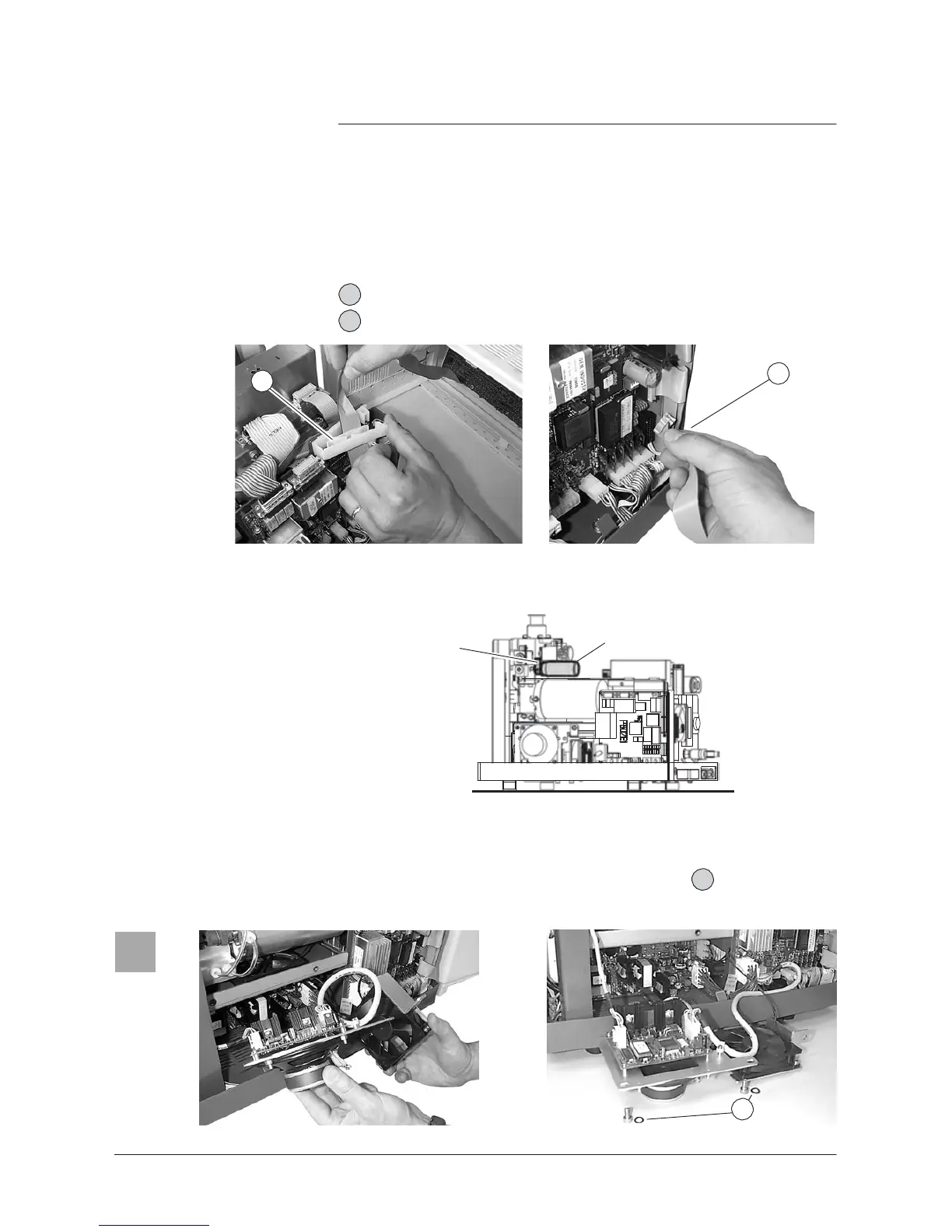

Access level 1 (ctd)
Removable cover (ctd)
Put the cover near the detector.
5 Open the «clip» for ribbon cable.
6 If necessary, disconnect the 20 points connector.
5
6
Access to the internal
calibrated leak
 Disconnect the calibrated leak temperature sensor.
 T ighten the calibrated leak clips between two fingers and pull the
calibrated leak down.
T emperature
sensor
Internal calibrated leak
5
Access level 2
Access to the board
P0326 and
P0330
To be applied after access level 1 is completed.
 Remove the two screws M5 and their washers
1
.
 Open the removable plate
1
2/5
2 Vis M5 + rondelles
