Alcatel Vacuum Technology France - User's Manual ASM 142

TRM DB02 03/2009

F 500

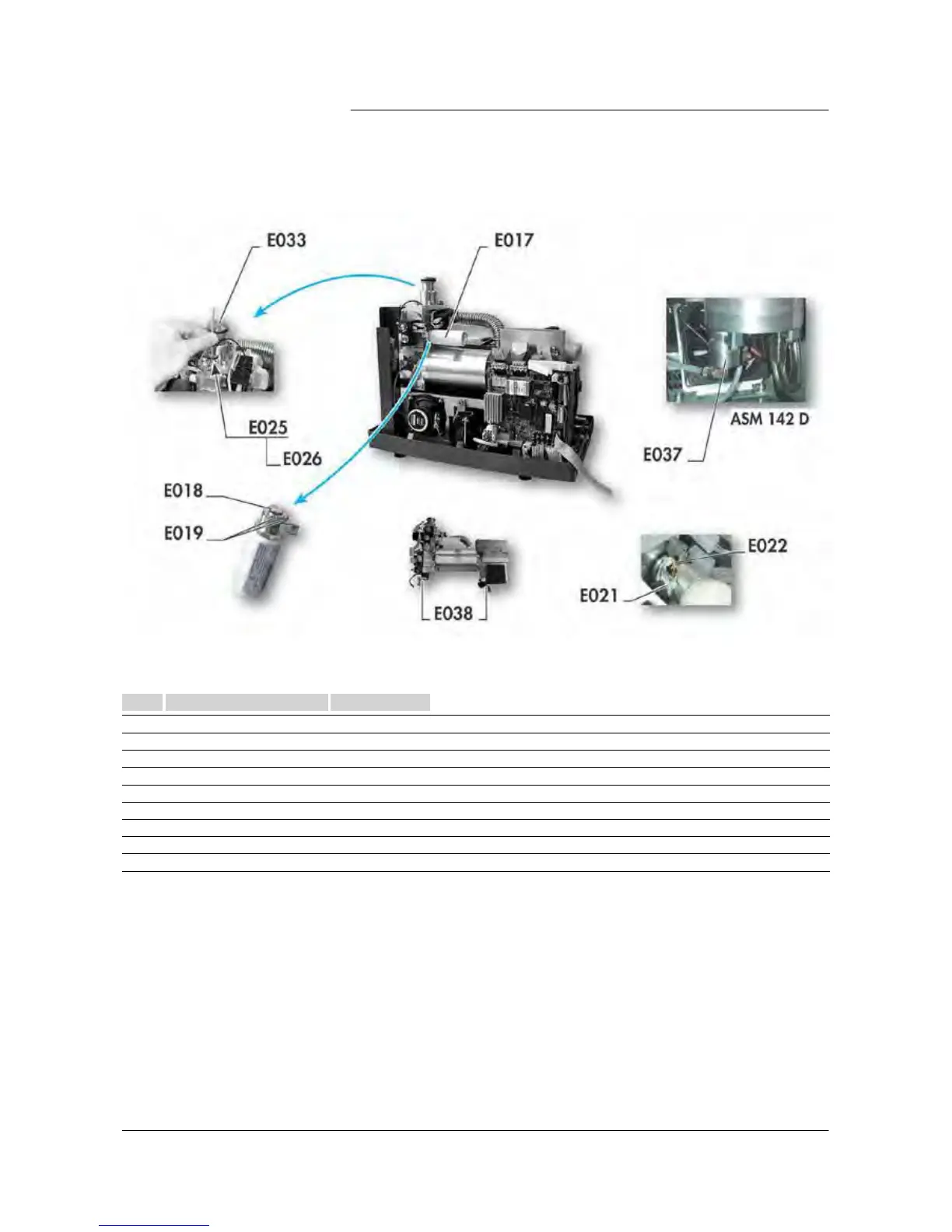

Measurement

ASM 142

Ref

Descriptio n

P/N

Qty

Remarks

E017

CALIBRATED LEAK, INTERNAL; 50 CC

109241

E018

O'RING 1.78 x 12.42 NBR

050143

E019

CLIP FOR CALIBRATED LEAK - 142/122D

A458317

E021

P0203E1 CAL. LEAK TEMPERATURE SENSOR

E022 HARNESS, CALIBRATED LEAK WIRING

E025

GAUGE, PI1 (ALUMINIUM)

795706

E026

FILAMENT FOR PI1 GAUGE

057972

E033

FILTER, INLET

103395

E038

SHOCK ABSORBER - C

076112

* Contact customer services
