Ensemble Epaq Hardware Manual -IO Expansion Board
EPAQ
PIN-1
PIN-2
PIN-3
PIN-4
PIN-5
OPTOIN3
OPTOIN2
OPTOIN1
OPTOIN0
+
-
5-24 VDC
INPUT SWITCH DEVICES
COMMON (0-3)

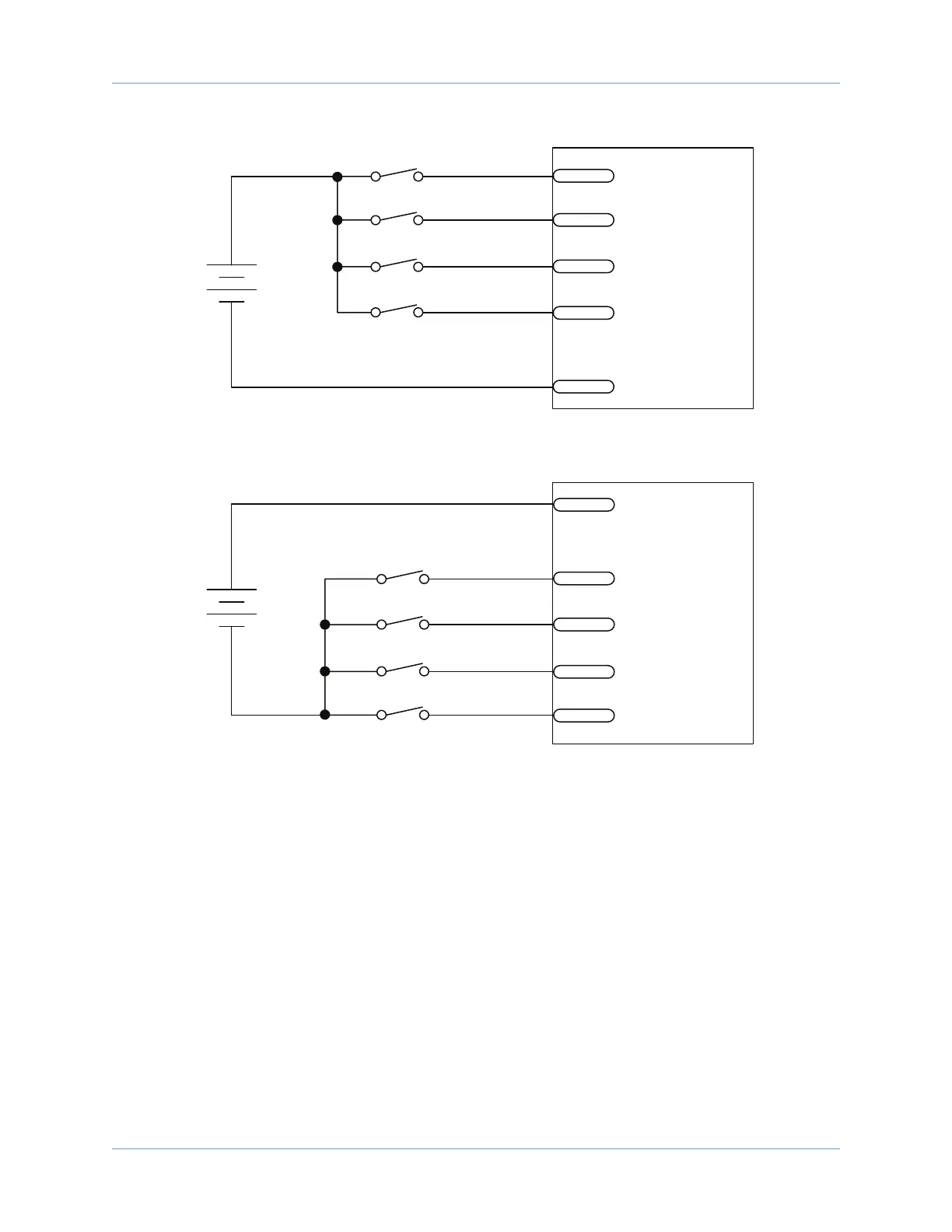

Figure 3-9: Inputs Connected to a Current Sourcing Device
EPAQ
PIN-1
PIN-2
PIN-3
PIN-4
PIN-5
OPTOIN3
OPTOIN2
OPTOIN1
OPTOIN0
+
-
5-24 VDC
INPUT SWITCH DEVICES
COMMON (0-3)
Figure 3-10: Inputs Connected to a Current Sinking Device
