AFL M210e User Manual

23

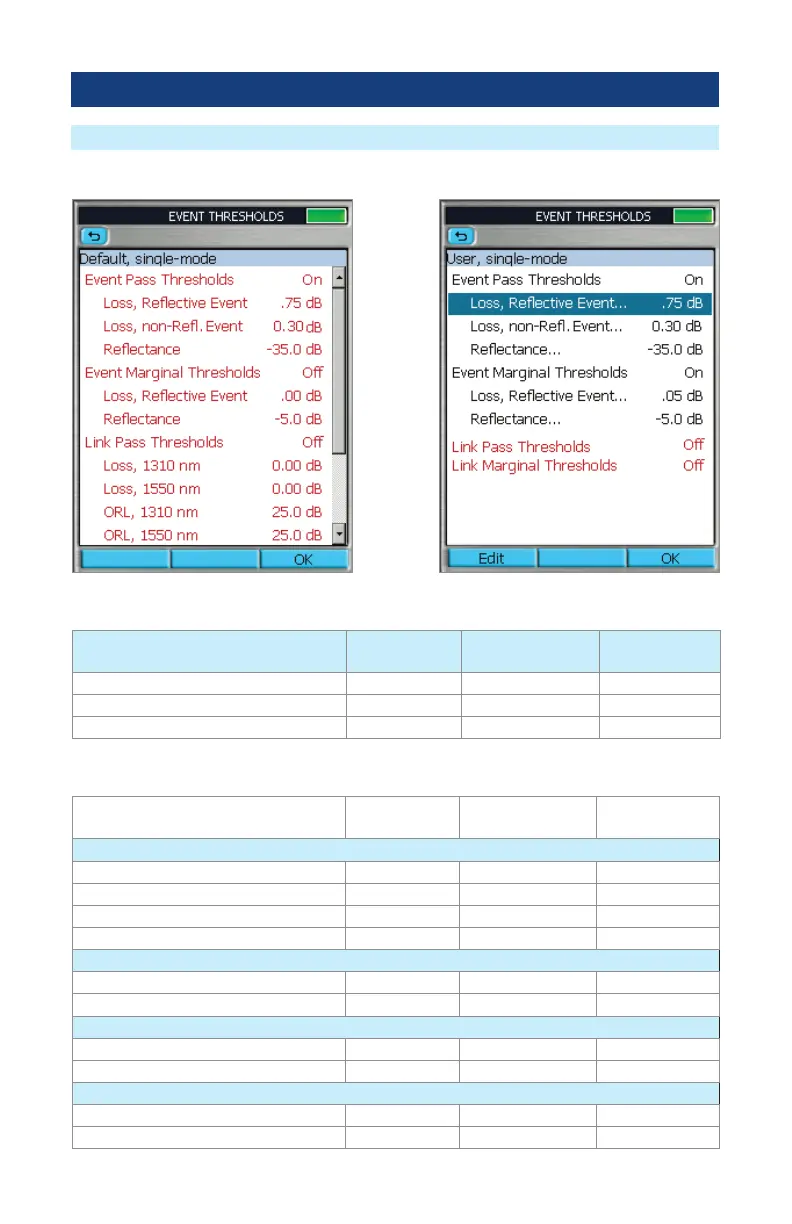

Event Thresholds Chart
Threshold Min Value
(dB)
Default Value
(dB)
Max Value
(dB)
Event Loss 0.02 0.10 1.0
Event Reectance -65.0 -65.0 -35.0
Event End 1.0 3.0 25.0
Event Pass Thresholds
Threshold Min Value
(dB)
Default Value
(dB)
Max Value
(dB)
Event Pass Thresholds
Loss, Reective Event 0.05 0.75 3.00
Loss, Non-reective Event 0.05 0.30 3.00
Reectance: 1310, 1550,1625 nm -65.0 -35.0 -20.0
Reectance: 850, 1300 nm -45.0 -22.0 -15.0
Event Marginal Thresholds
Loss, Reective Event 0.00 0.00 1.00
Reectance 0.00 -5.00 -10.0
Link Pass Thresholds
Loss: 850, 1300, 1310, 1550, 1625 nm 0.00 0.00 35.0
ORL: 850, 1300, 1310, 1550, 1625 nm 20.0 25.0 65.0
Link Marginal Thresholds
Loss: 850, 1300, 1310, 1550, 1625 nm 0.00 0.00 5.00
ORL: 850, 1300, 1310, 1550, 1625 nm 0.00 0.00 10.0
Pass/Fail Thresholds
Event Settings
Set to Default Set to User
