35

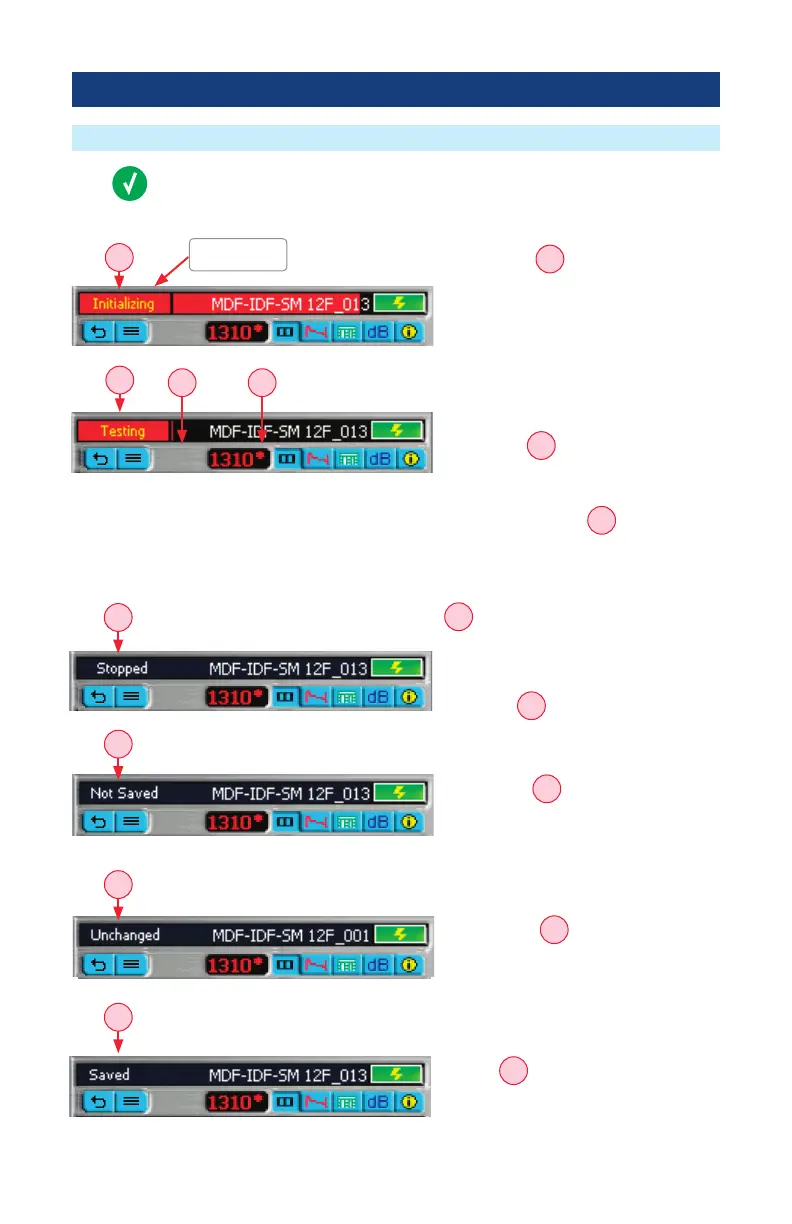

Starting Test header followed
by Testing
B
is displayed at the
beginning of an OTDR test. The header
eld will turn Red.
The Yellow Laser icon
C
will be
displayed while the OTDR laser is on.
For multiple wavelength tests, the active
wavelength is followed by an asterisk
D
during testing and when reviewing
completed tests.
Initializing
A
header is displayed
when the test started with the Front
Panel Check/First Connector Check
features enabled. The header eld will
turn Red.
Stopping header will be displayed while
stopping a test and will be followed by
Stopped
E
.
Not Saved
F
header indicates:
• Test is done and trace(s) are new.
• Saved trace(s) that have been edited
since they were opened and edits are
not saved.
Unchanged
G
header indicates that
opened trace is saved and no edits have
been made after opening.
Saved
H
header is displayed after test
is saved.
Running OTDR Tests
Page header
OTDR Testing
E
F
G
H
A
B
C D
Press
to start or stop an OTDR Test.
The OTDR page header will change to display test progress and the displayed test results status.
