AFL M210e User Manual

8
User Interface Overview
Two types of modes are available from the Main Menu as follows:
TEST MODES: OTDR and OPM
Used to perform OTDR and OPM tests. To select the desired mode
• Tap the appropriate Touchscreen icon.
• Use
arrows to indicate the desired
mode icon, and then press
key.
UTILITY MODES: Results, Settings, and New Job
Used to select user preferences, perform
general settings, create a new job (set up a
le structure and dene the ber under test
location), manage saved test results, and
perform other non-test functions.
To select the desired mode
• Tap the appropriate Touchscreen icon.
• Press the appropriate soft key located
below each Touchscreen icon.

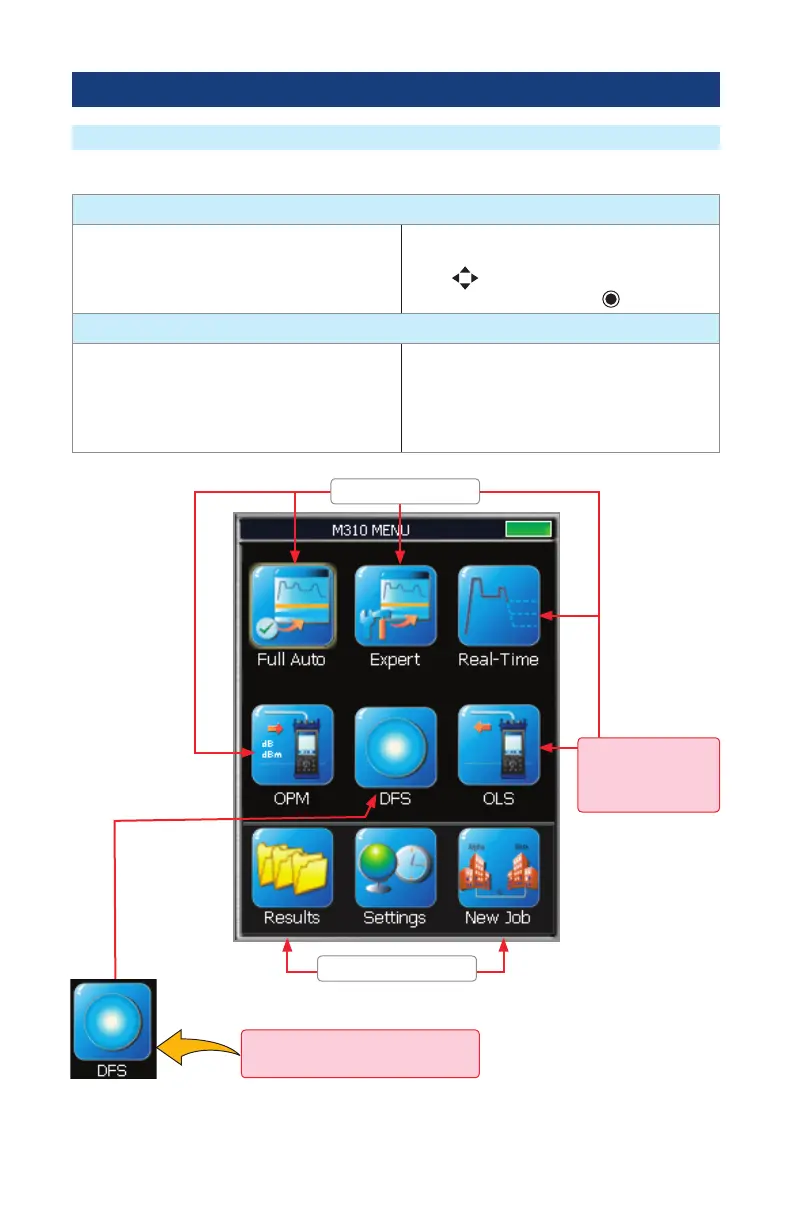

Main Menu
DFS Test Mode is optional
(see page 4 for details)
Utility modes icons
Test modes icons
OLS Test Mode is
only available on
M310 OTDR
