Bi-directional Analysis Operation
View Results in Summary Page: Bi-directional View
1. Press Wave to display the Wave menu
A
and select the desired wavelength to be displayed
(see “Wavelength Selection Menu In OTDR Pages” on page 45 for details).
2. Press View to display the View menu
B
.
3. Use arrows to select the desired option:
– Bi-directional 1 -> 2 to display Summary data and Trace taken from End 1
– Bi-directional 2 -> 1 to display Summary data and Trace taken from End 2
4. Press key to conrm selection.

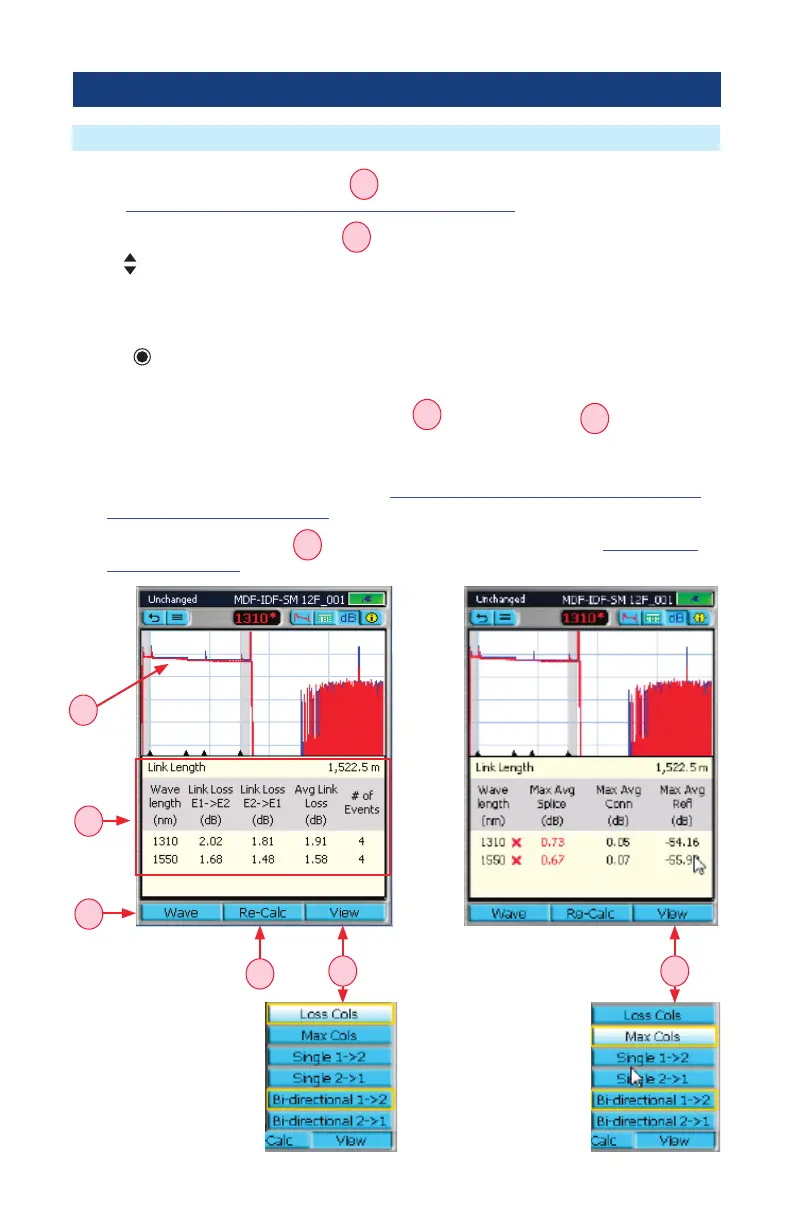

5. The Summary page will display test results for the selected options.
6. The Summary page will display the Trace Graph
C
and Summary Table
D
for the selected
test.
– If needed, switch between two column sets views, Loss Cols and Max Cols, to see the
complete analysis for the selected test. See “How to Switch Column Sets in Summary Page
(Bi-directional View)” on page 62 for details.
– If needed, press the Re-Calc
E
key that allows to re-calculate events (see “Re-Calculate
Events” on page 48 for details).
E
A
B B
C
D
