6

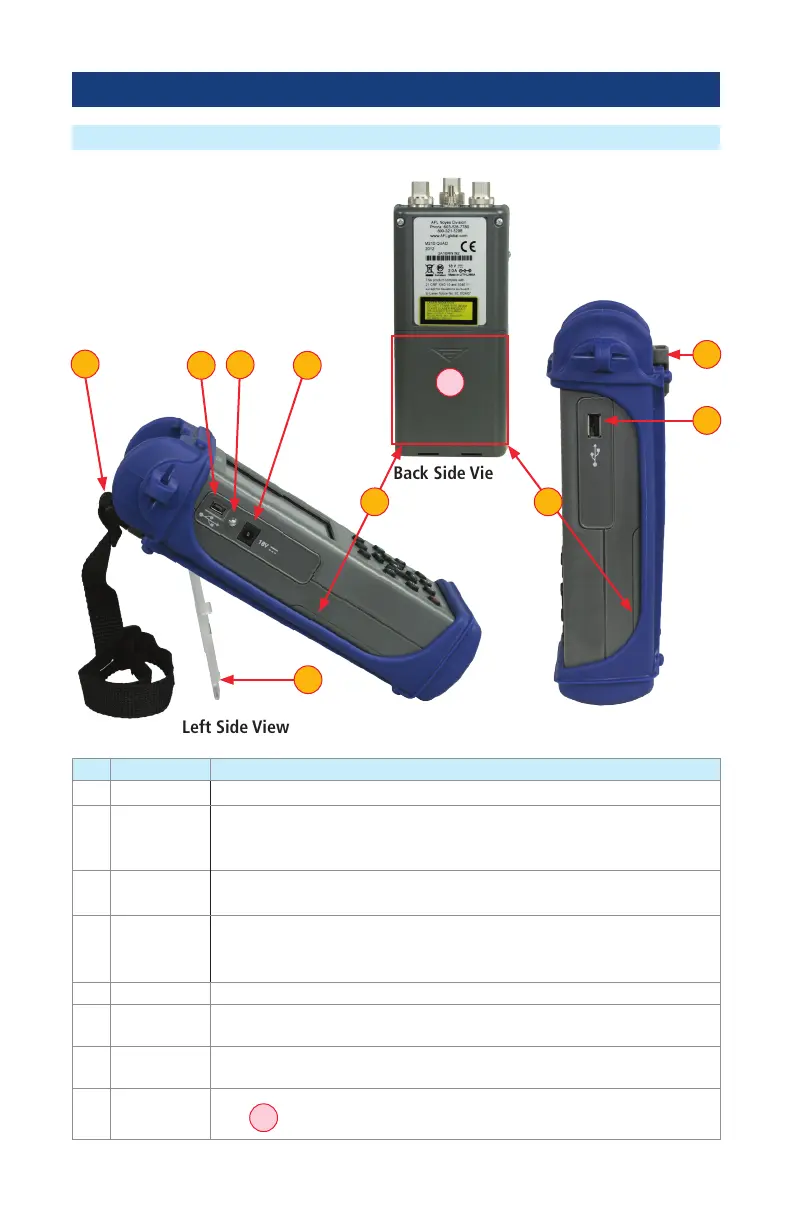

Hardware Overview
Controls, Indicators, and Ports
Ref Feature Description
1 Power port
This is interface for the AC power adapter/charger.
2 AC/Charger
indicator
When ON, indicates that an AC adapter is connected to the OTDR.
- Red light - rechargeable battery is charging.
- Green light - rechargeable battery is fully charged.
3 Mini-USB
function port
This port may be used to connect OTDR to a USB host port on PC with the
supplied cable.
4 USB function
port
This USB port allows connection to a PC for transferring stored test results.
Also this port may be used to connect USB Flash Drive for data storage and
copying Internal les.
5 Tilt stand Surface-top tilt stand may be used for the convenience of operation.
6 Wrist strap
buckle
Used to attach an adjustable wrist strap supplied with your OTDR.
7 Wrist strap This is an adjustable wrist strap is supplied with an OTDR and may be used
for the convenience of carry and operation.
9 Battery
compartment
Holds removable/rechargeable Li-ion battery. Slide the battery compartment
door
A
to open.
Left Side View Right Side View
Back Side View
A
5
1
2
4
8 8
6
3
7
To Next Page
