Figure 90: Thumbnail for a digital tomosynthesis group
2. Select the thumbnail for the digital tomosynthesis group in the Image
Overview pane of the Acquisition window.
The selected DR detector is activated. The default X-ray exposure
parameters and X-ray system position for the selected examination are
sent to the modality. The software console displays these settings in the
examination overview.
1.
X-ray modality settings
2.
Generator settings for the static image
3.
Automatic position

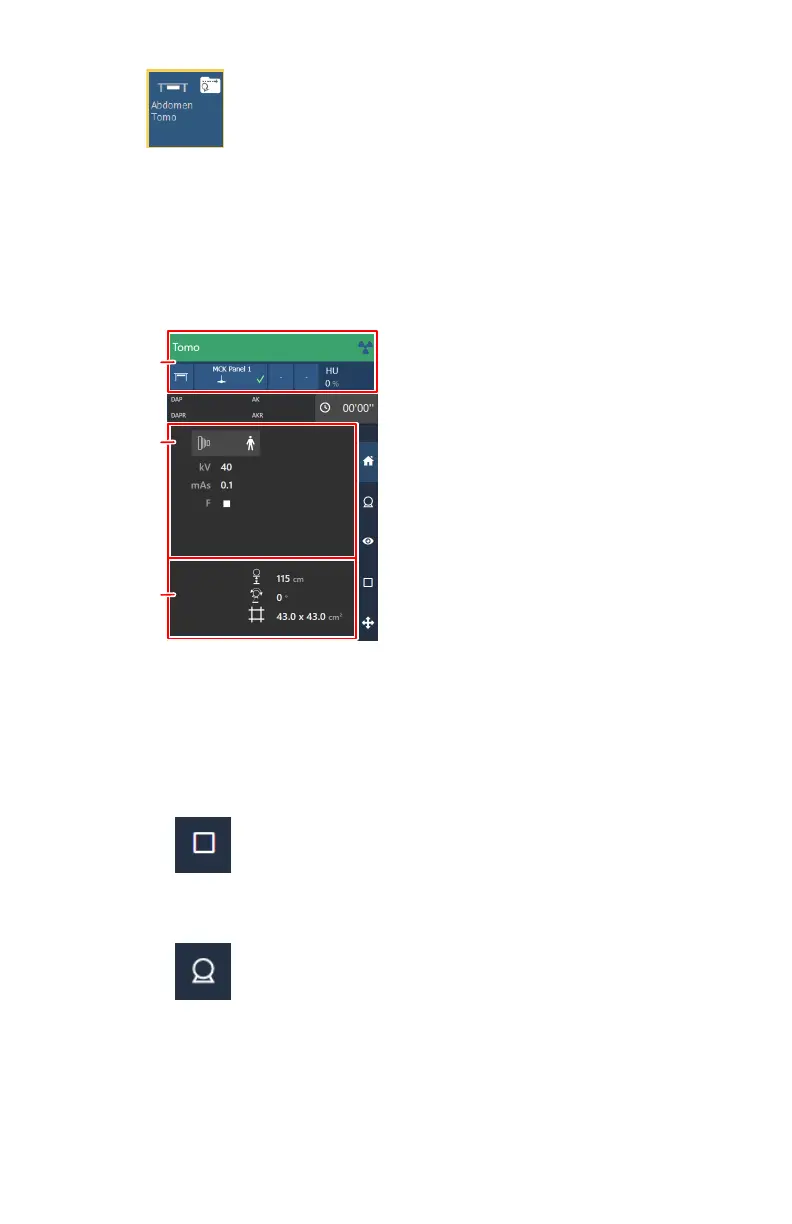

Figure 91: Examination overview
a) Check the X-ray modality settings.
Figure 92: X-ray modality controls on the software console
b) Check the exposure settings.
Figure 93: Generator controls for static images
a) Check the digital tomosynthesis settings.
The digital tomosynthesis group contains X-ray modality settings to
control the X-ray system movement, the X-ray exposure parameters
and the image processing for the reconstruction.
