AGFA DR 800 - Mounting the paediatric cradle

Mounting the paediatric cradle
The paediatric cradle is mounted to the tabletop by means of two special hand
grips provided with the accessory. The accessory is composed of a support
with fittings and a contention structure.
1. Place the tabletop in the horizontal position.
2. Mount the special hand grips in the same manner as those provided as
standard accessory.
The hand grips must be positioned on the tabletop so that the knobs are
perfectly aligned.

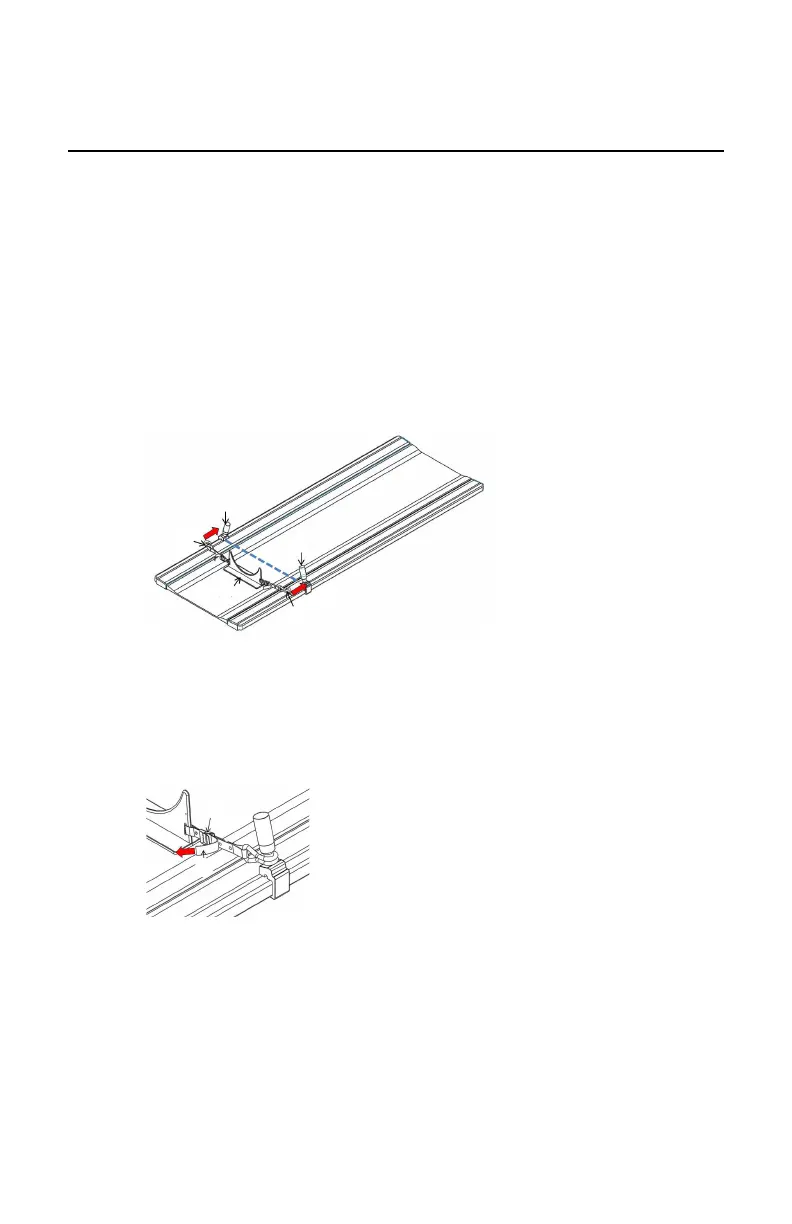

3. Position the support on the tabletop and attach the two ends to the tube
supports of the knobs.
1
3
1
2
3
2
1
1.
Special hand grips
2.
Support for the contention structure
3.
Hooks for attaching the support to the hand grips
4. Tighten the belts, on both sides, keeping the support in the middle and
tighten the safety buckles.
1
3
1
2
3
2
1
1.
Belt
2.
Safety buckle
5. Ensure it is firmly fastened, lifting the support a few centimetres from the
tabletop surface.
6. Insert the contention structure in the support, fitting the groove on the
end octagon in the support.
