Radiographic Table
The radiographic table is used for positioning of the patient lying, sitting or
standing in front of the detector for exposure.
The radiographic table has various degrees of freedom to allow different
examinations.
The radiographic table contains a built-in DR detector to acquire radiography
or fluoroscopy images.
The radiographic table has two variants:
• Radiographic table with a built-in set of focused grids. Exposures can be
made with or without a grid. The grid is automatically selected based on
the SID.
• Radiographic table with removable grids. The focal distance of the grid is
detected in the bucky.

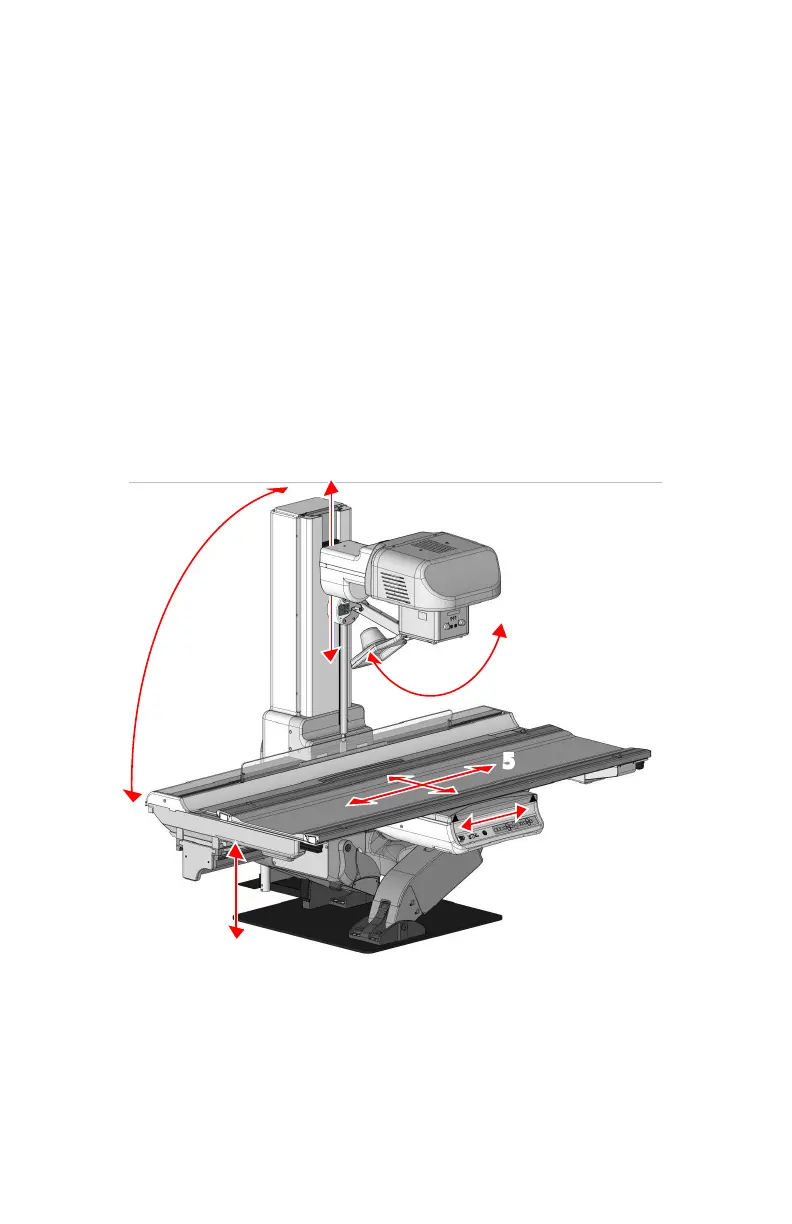

1.
Table height
2.
Table tilting angle
3.
Source image distance (SID)
4.
X-ray tube tilting angle, coupled to a displacement of the DR detector (for
oblique exposures)
X-ray tube rotation (to direct the X-ray tube away from the radiographic
table)
