Exposure control pedals
The exposure control pedals are available as either a single pedal to control
fluoroscopy or a double pedal to control fluoroscopy and radiography.
WARNING:
Whether a footswitch for the exam room is present on the
system, it is possible that its use has been limited and that it is
disabled for radiographic exams.
WARNING:
Do no step on the footswitch top cover.
An optional wireless double pedal is available for use in the examination
room. The wireless pedal is powered by three standard batteries. It is the
operator's responsibility to check the state of charge of the batteries and
replace them if necessary.

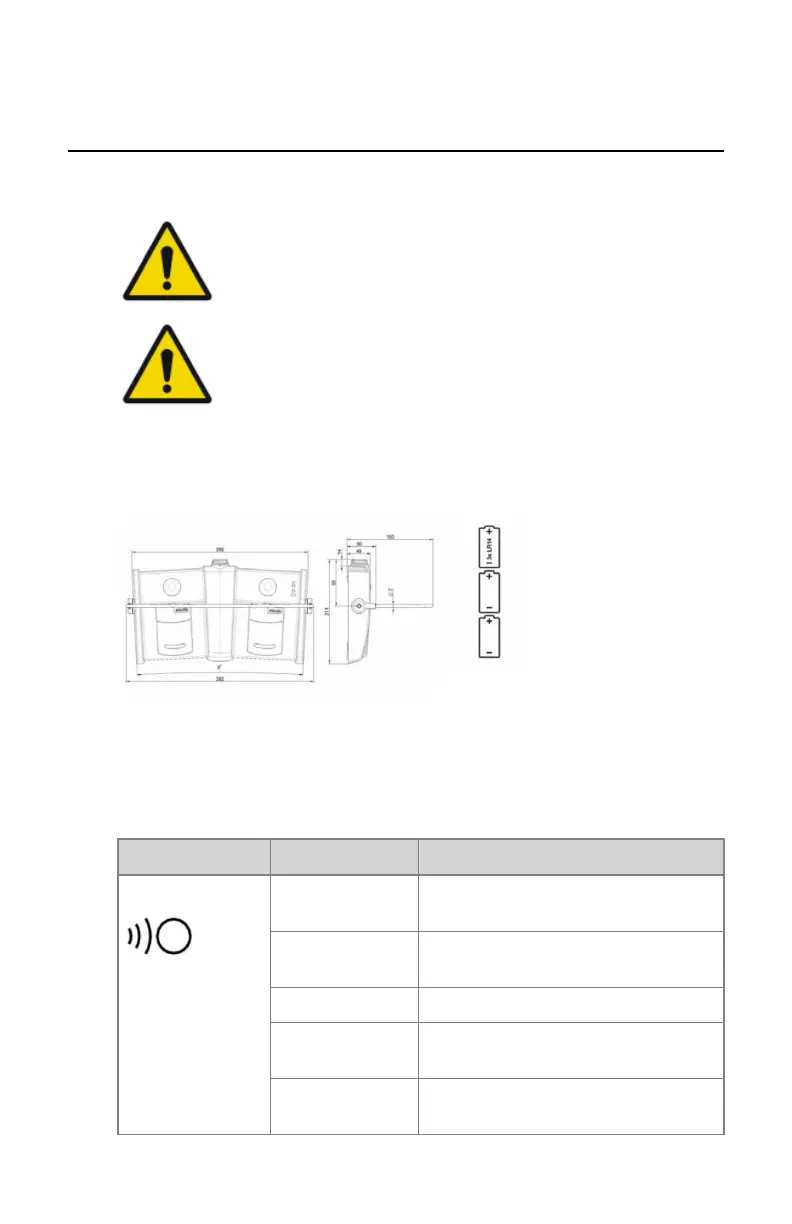

Figure 175: Wireless double pedal
Batteries: 3 x LR14 (1.5 V DC), 7500-8000 mAh
Table 47: Status indicator lights on the wireless double pedal
Symbol Status Description
Connection status
Off (and battery
status off)
Footswitch in sleep mode
Off (and battery
status on)
No pairing partner found (receiver
out of range, switched off)
Green Radio connection established
Green blinking
(slowly)
Radio connection established, limited
connection quality
Green blinking
(fast)
Footswitch is in pairing mode
DR 800 | Options and accessories | 261
0392C EN 20210309 1049
