AGFA DR 800 - Mounting the lateral arm rest on the radiographic wall stand

Mounting the lateral arm rest on the radiographic wall
stand

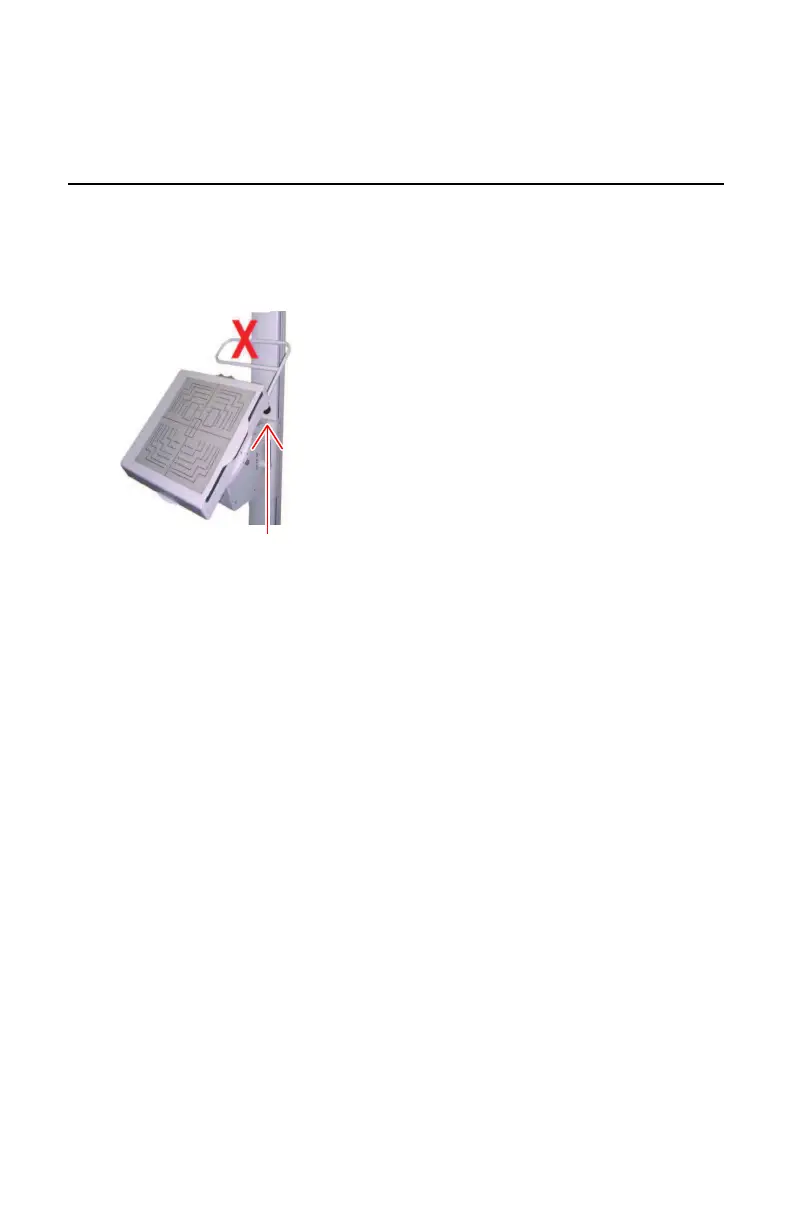

Take care that the lateral arm rest does not collide with the ceiling when
moving the bucky upward.
Take care when changing the bucky position (tilting, rotating) that the lateral
arm rest does not collide with the column of the wall stand.
Figure 172: Knob for locking the lateral arm rest
To mount and position the lateral arm rest:
1. Insert the lateral arm rest in the mounting slot at the top of the bucky
frame.
2. Turn the knob clockwise to lock the lateral arm rest.
