Mounting the lateral cassette/detector holder
WARNING:
Both the mounting and the use of the lateral cassette/detector
holder are allowed only with the table in the horizontal
position. In no case is the operator allowed to use this accessory
with the table in vertical position.
A DR detector can be mounted in landscape or portrait position, with or
without a handle unit.

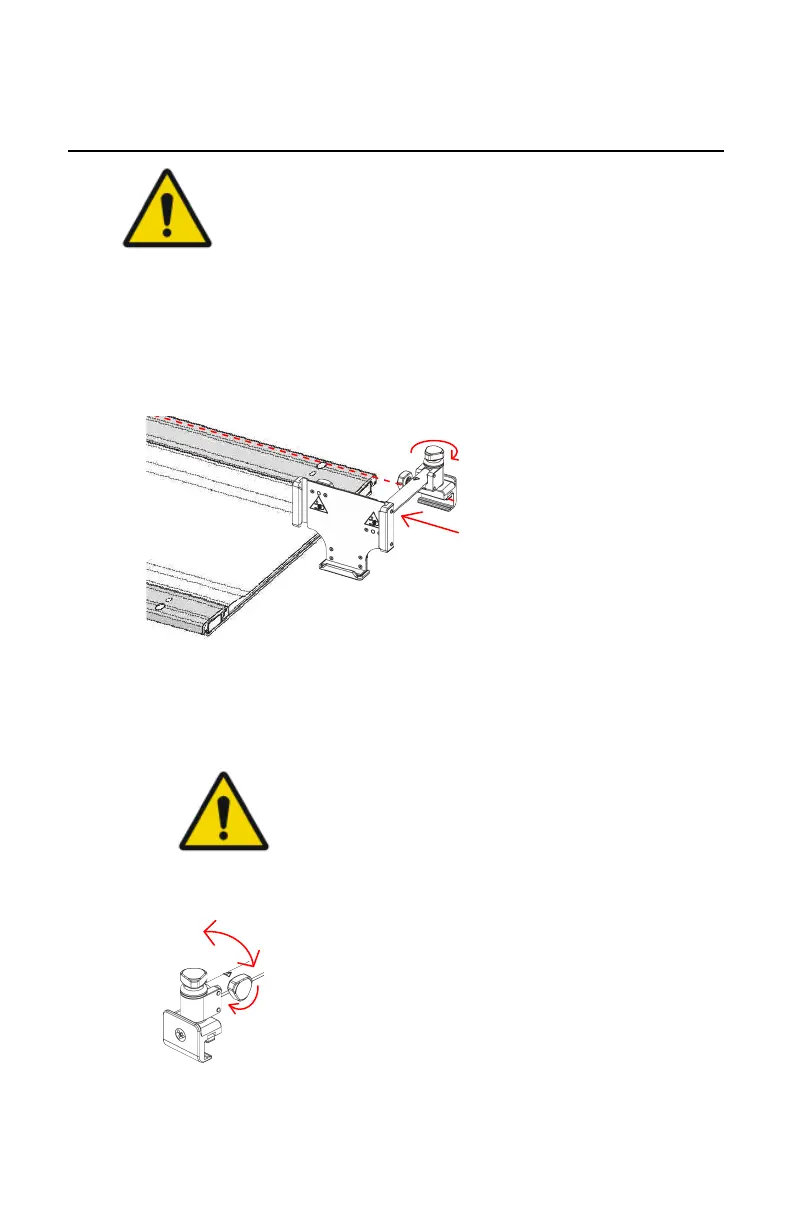

1. Place the table in the horizontal position.
2. Mount the detector holder on the table.
a) Loosen the knob on the mount of the lateral detector holder.
b) Insert the detector holder on the tabletop guide.
WARNING:
The detector holder must only be mounted such that the
detector holder is positioned above the surface of the
table.
c) Fasten the detector holder by turning the knob thoroughly clockwise.
3. Adjust the height of the detector holder.
a) Hold the detector holder with one hand and loosen with the other
hand the knob that secures the arm.
254 | DR 800 | Options and accessories
0392C EN 20210309 1049
