Mounting the lateral arm rest on the radiographic
table
The lateral arm rest is used for examinations with the table in vertical
position.
WARNING:
Do not mount the lateral arm rest when the table is in horizontal
position. Do not tilt the table while the lateral arm rest is
mounted.
The lateral arm rest can support a maximum weight of 30 kg.
WARNING:
Do not hang from the lateral arm rest. Do not use the lateral arm
rest as a holder for objects, such as paper rolls or leaded aprons.
1.
Clamp for side rails of the radioagraphic table
2.
Knob for loosening or fastening the rotation of the lateral arm rest
3.
Knob for loosening or fastening the clamp on the side rails of the
radiographic table

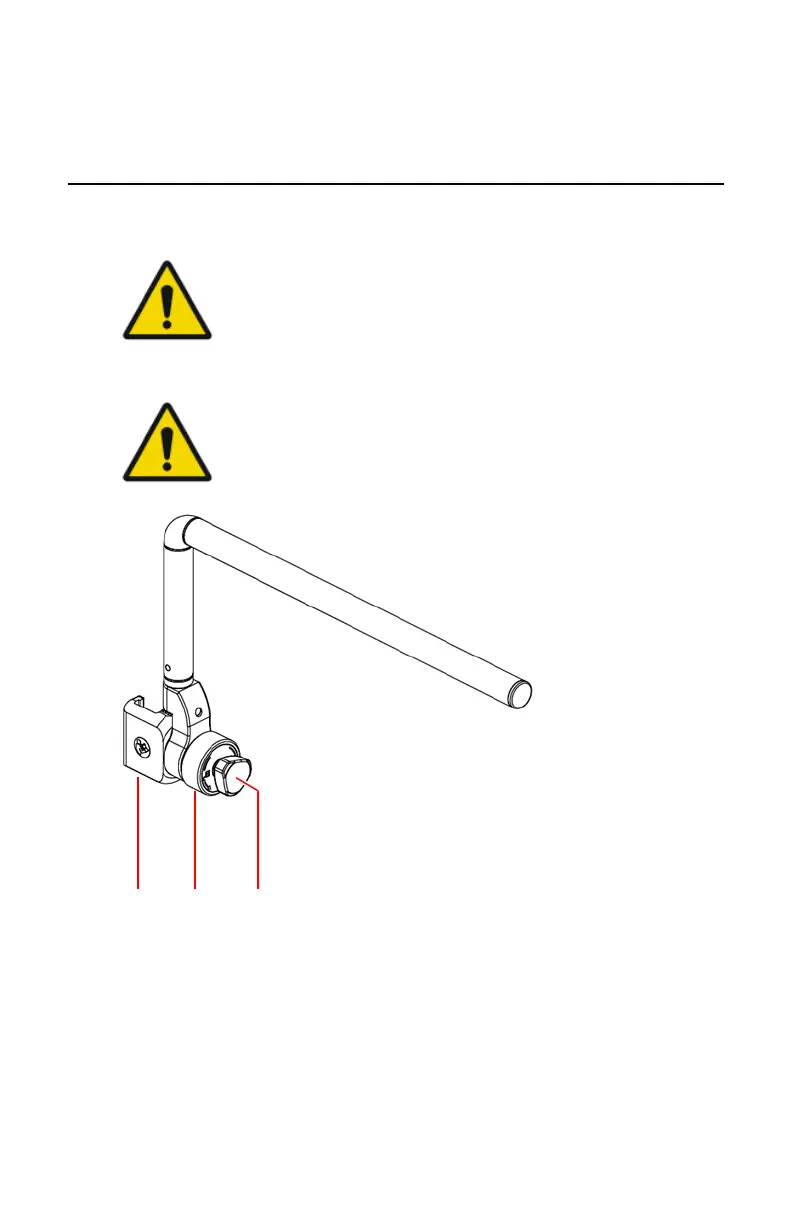

Figure 171: Lateral arm rest
To mount and position the lateral arm rest:
DR 800 | Options and accessories | 251
0392C EN 20210309 1049
