Mounting the joystick console on the radiographic
table
To assemble the control joystick, as indicated by the arrow.
1. Insert the accessory on the edge of the patient tabletop.
2
1

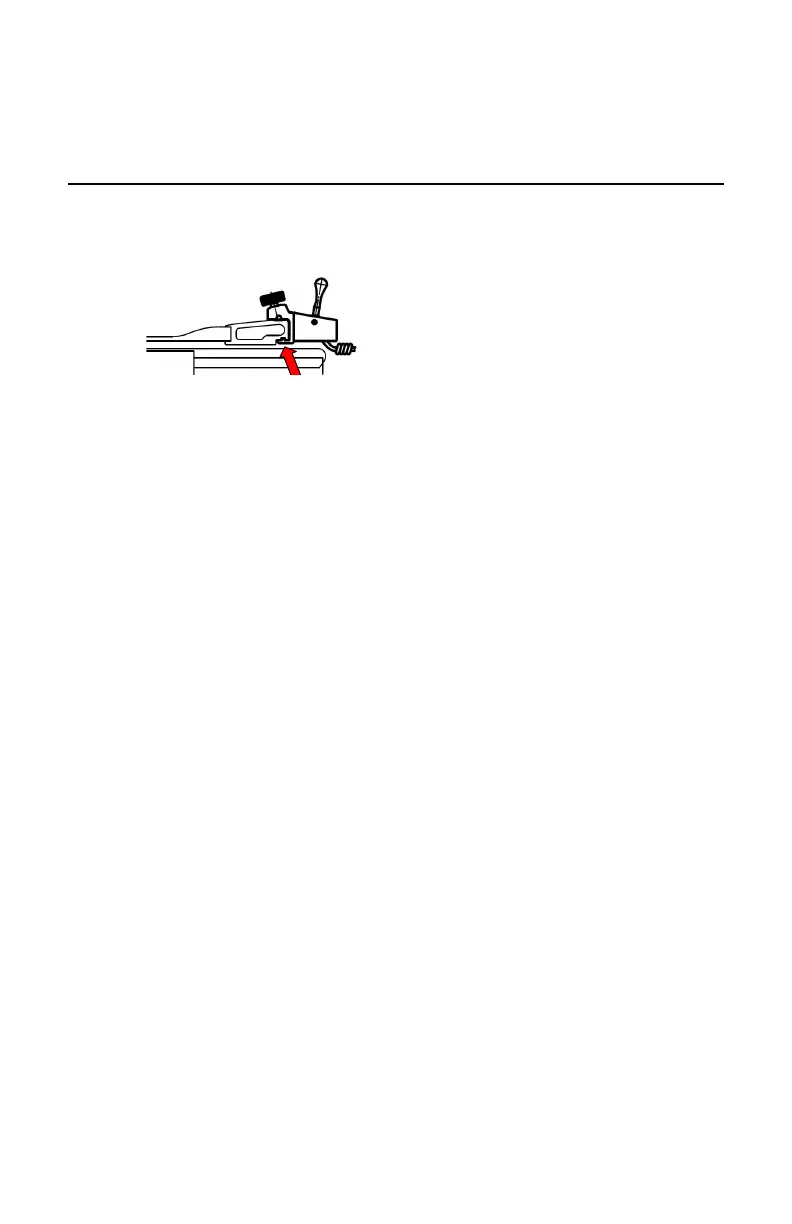

Figure 173: Joystick inserted on the edge of the tabletop
2. Position the joystick at the required position on the length of the tabletop.
3. Turn the knob clockwise to fasten it to the patient tabletop.
4. Connect the plug to the connector at the foot of the radiographic table.
