12 Identifying Cables

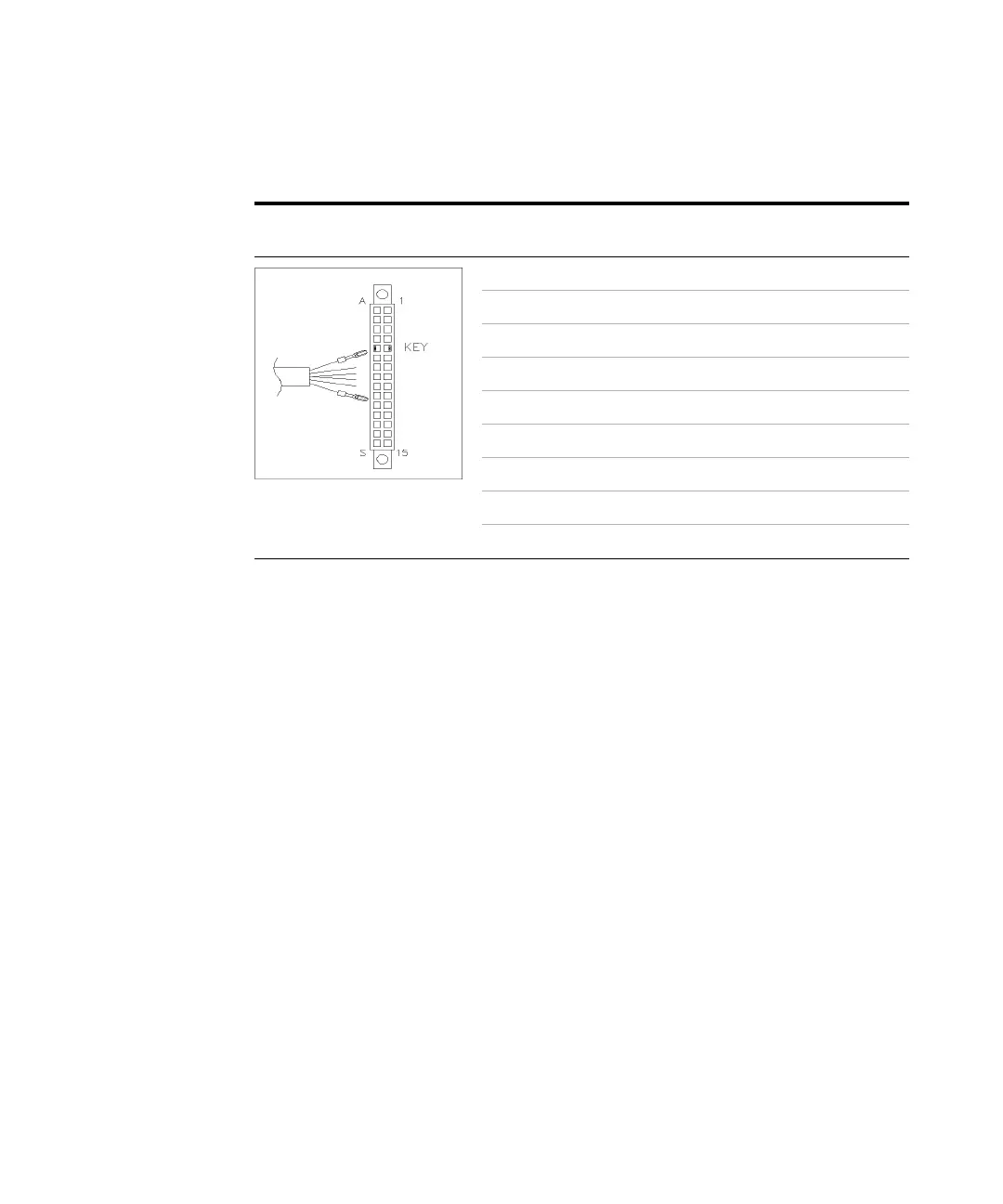

Remote Cables
Agilent Module to General Purpose
p/n 01046-60201 Pin Universal Pin Agilent
module
Signal Name Active
(TTL)
1 - White Digital ground
2 - Brown Prepare run Low
3 - Gray Start Low
4 - Blue Shut down Low
5 - Pink Not connected
6 - Yellow Power on High
7 - Red Ready High
8 - Green Stop Low
9 - Black Start request Low
