3 Installing the Module
Installing the Detector
9 Turn on power by pushing the button at the lower left hand side of the
module. The status LED should be green.

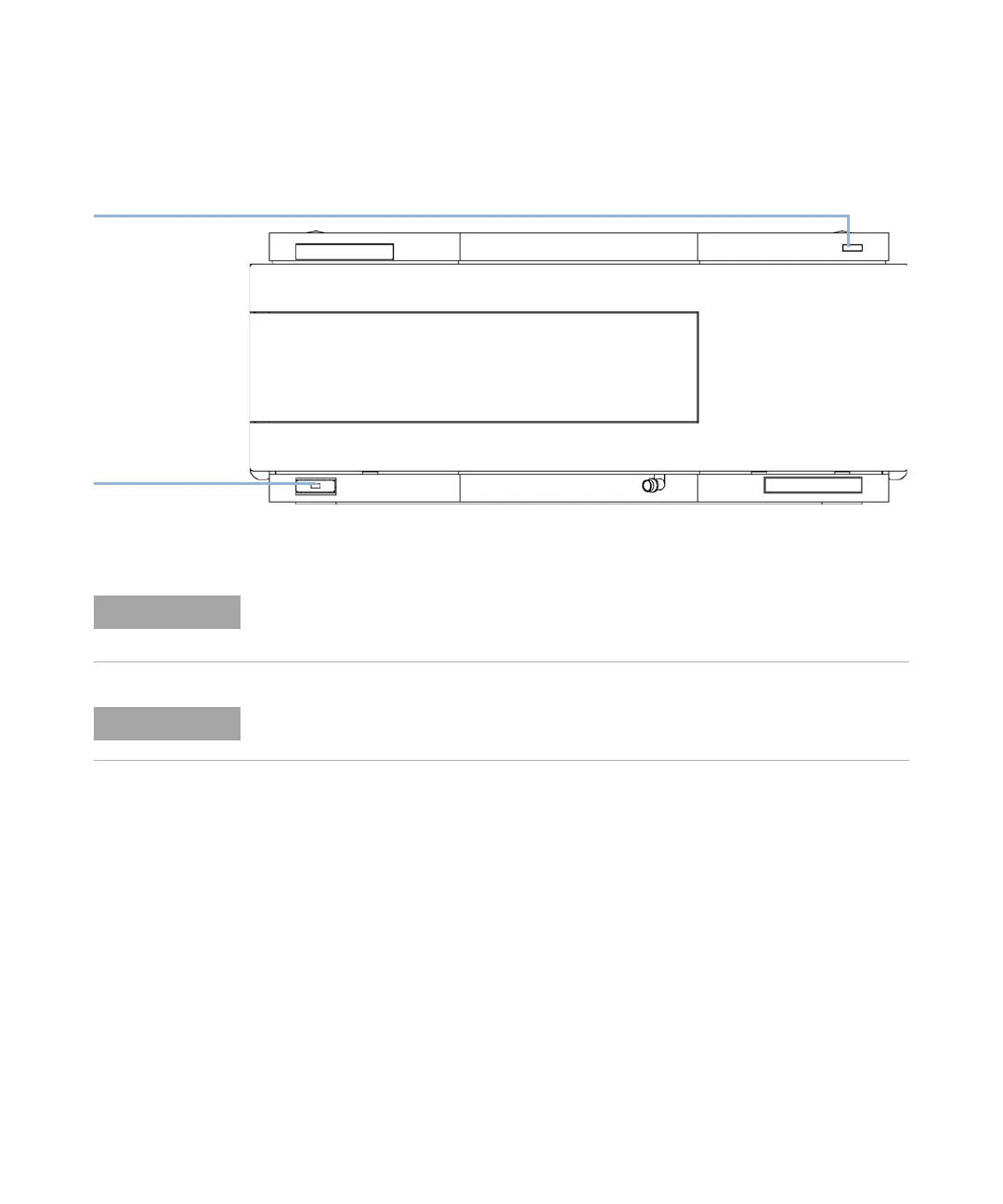

Figure 11 Front View of Detector
HiVijh^cY^XVidg
\gZZc$nZaadl$gZY
A^cZedlZghl^iX]
l^i]\gZZca^\]i
NOTE
The module is turned on when the line power switch is pressed and the green indicator
lamp is illuminated. The module is turned off when the line power switch is protruding and
the green light is off.
NOTE
The module was shipped with default configuration settings. To change these settings see
“Configuration Switch” on page 60.
