Using a Custom Cable
Refer to page 272 for additional information about building custom input
cables.

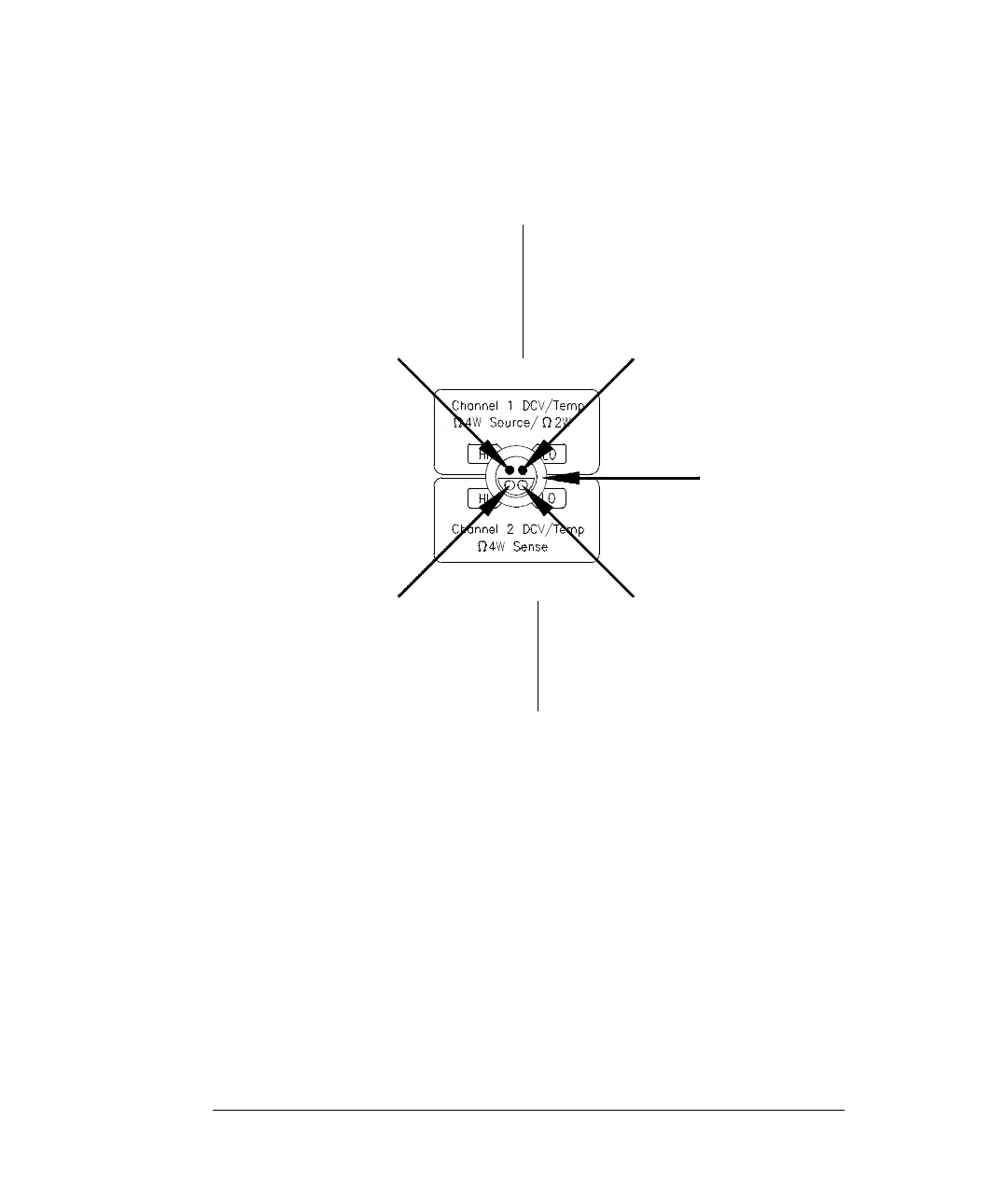

Channel 1
HI LO
DCV + –
4-WireΩ
Source + Source –
2-WireΩ
Source and Sense + Source and Sense –
Thermistor Source and Sense + Source and Sense –
Channel 2
HI LO
DCV + –
4-WireΩ
Sense + Sense –
Thermocouple + –
Earth Ground (shell)
Chapter 1 Quick Start
To Make Input Connections
