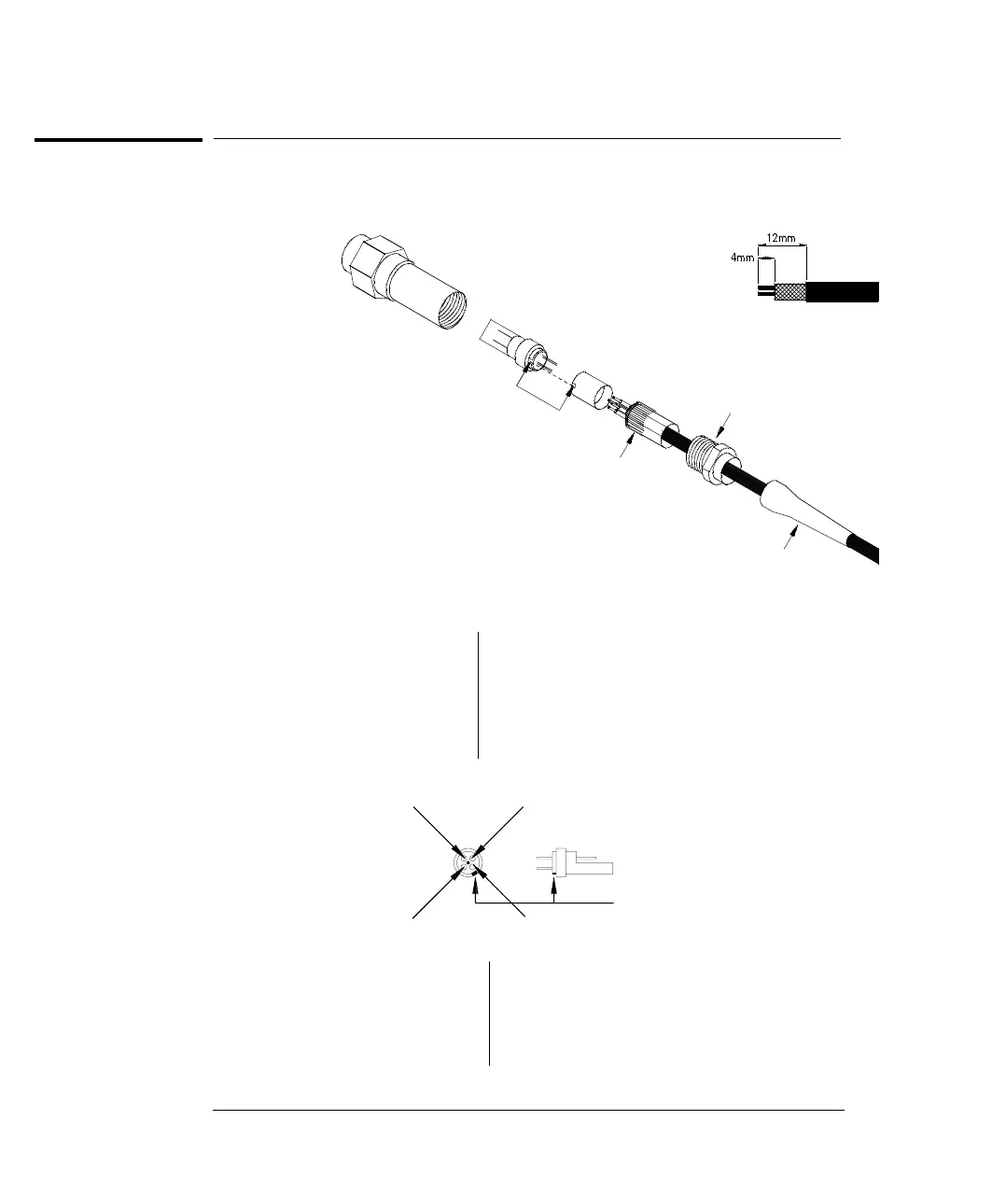

Input Connector
Channel 1
HI LO
DCV
+ –
4-WireΩ
Source + Source –
2-WireΩ
Source and Sense + Source and Sense –
Thermistor
Source and Sense + Source and Sense –
Channel 2
HI LO
DCV
+ –
4-WireΩ
Sense + Sense –
Thermocouple
+ –
Align keys
Wrap cable shield
(makes earth ground)
WIRE: 22 - 28 guage copper
Rubber Grommet
Torque 5 to 7 in-lb
NOTE: key
Chapter 7 Measurement Tutorial
Input Connector
272
