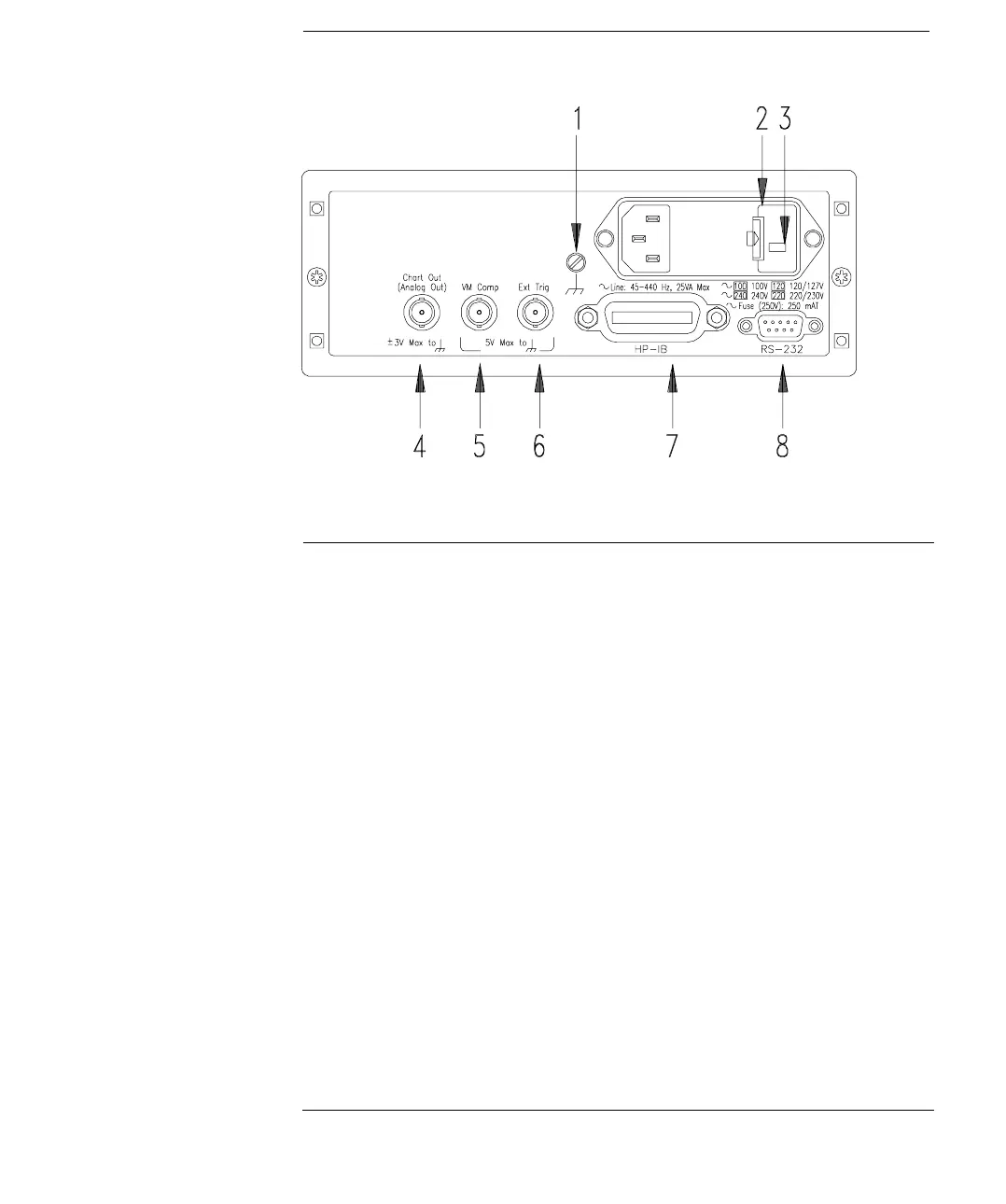

The Rear Panel at a Glance
1 Chassis ground 5 Voltmeter complete output terminal
2 Power-line fuse-holder assembly 6 External trigger input terminal
3Power-line voltage setting7GPIB (IEEE-488) interface connector
4 Chart recorder output terminal
(Analog out)
8 RS-232 interface connector
Use the front-panel Input / Output Menu to:
•Select the GPIB or RS-232 interface
•Set the GPIB bus address
• Set the RS-232 baud rate and parity
