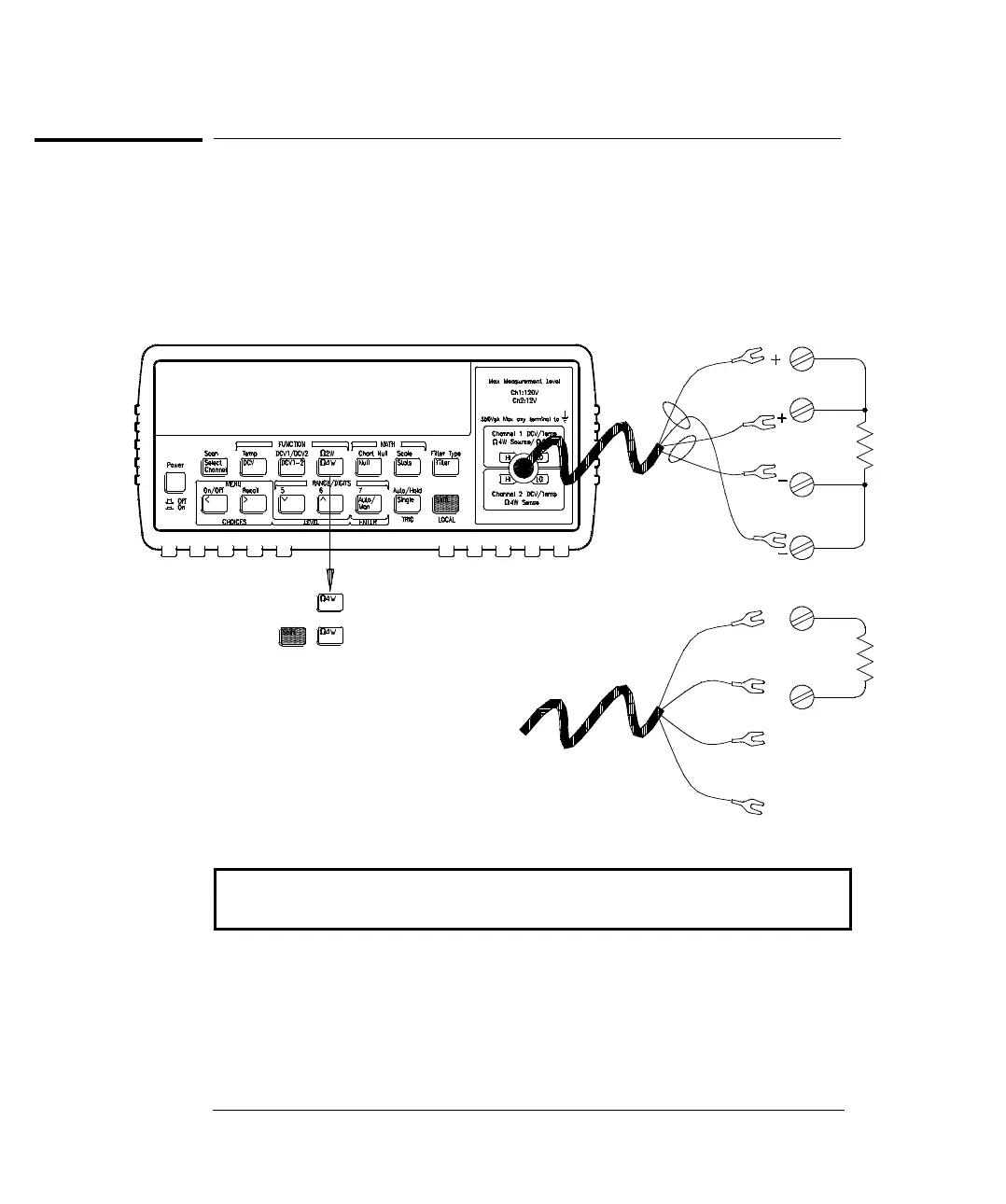

To Measure Resistance
Ranges: 1 Ω , 10 Ω , 100 Ω , 1 kΩ , 10 kΩ , 100 kΩ , 1 MΩ
Maximum resolution: 0.1 µ Ω (on 1 ohm range)
See also Resistance Measurements on page 68.
Resistance measurements use offset compensation. Offset compensation
can be disabled if desired (see page 69).
