Agilent Technologies 34420A - To Measure Temperature with Thermistors; To Measure Temperature with Rtds

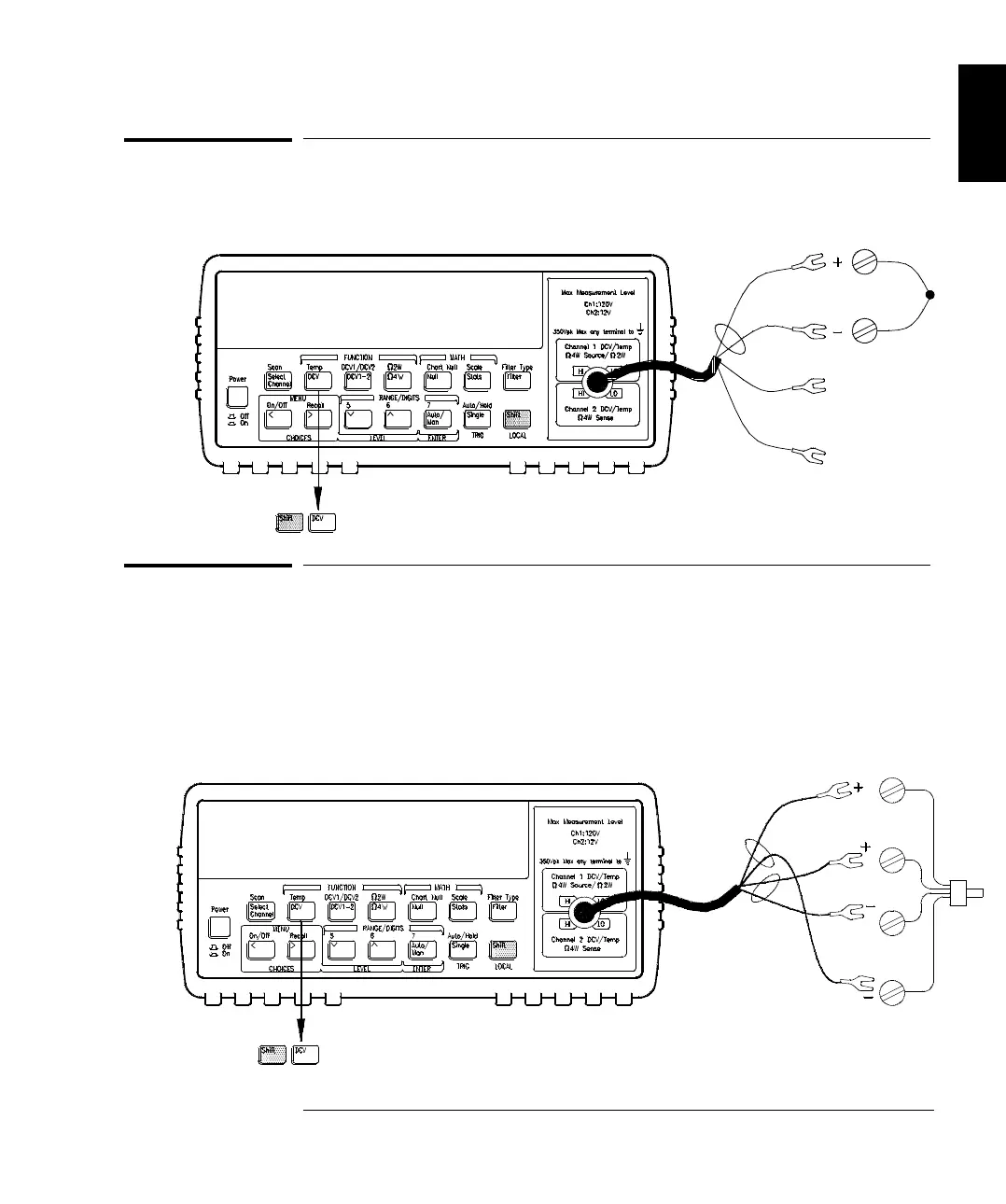

To Measure Temperature With Thermistors
Thermistor type: 5 kΩ
To Measure Temperature With RTDs
4-wire, type: α = .00385 (DIN/IEC 751) or α = .00391
R
0
= 4.9 Ω to 2.1 kΩ
RED
CH1 BLACK
GREEN
OPEN
WHITE
RED
(SOURCE)
CH1 GREEN
CH2
(SENSE) WHITE
BLACK
1
Chapter 1 Quick Start
To Measure Temperature With Thermistors
