Chapter 4 203
Assembly Replacement
Procedure 5. A2, A3, A4, and A5 Assemblies

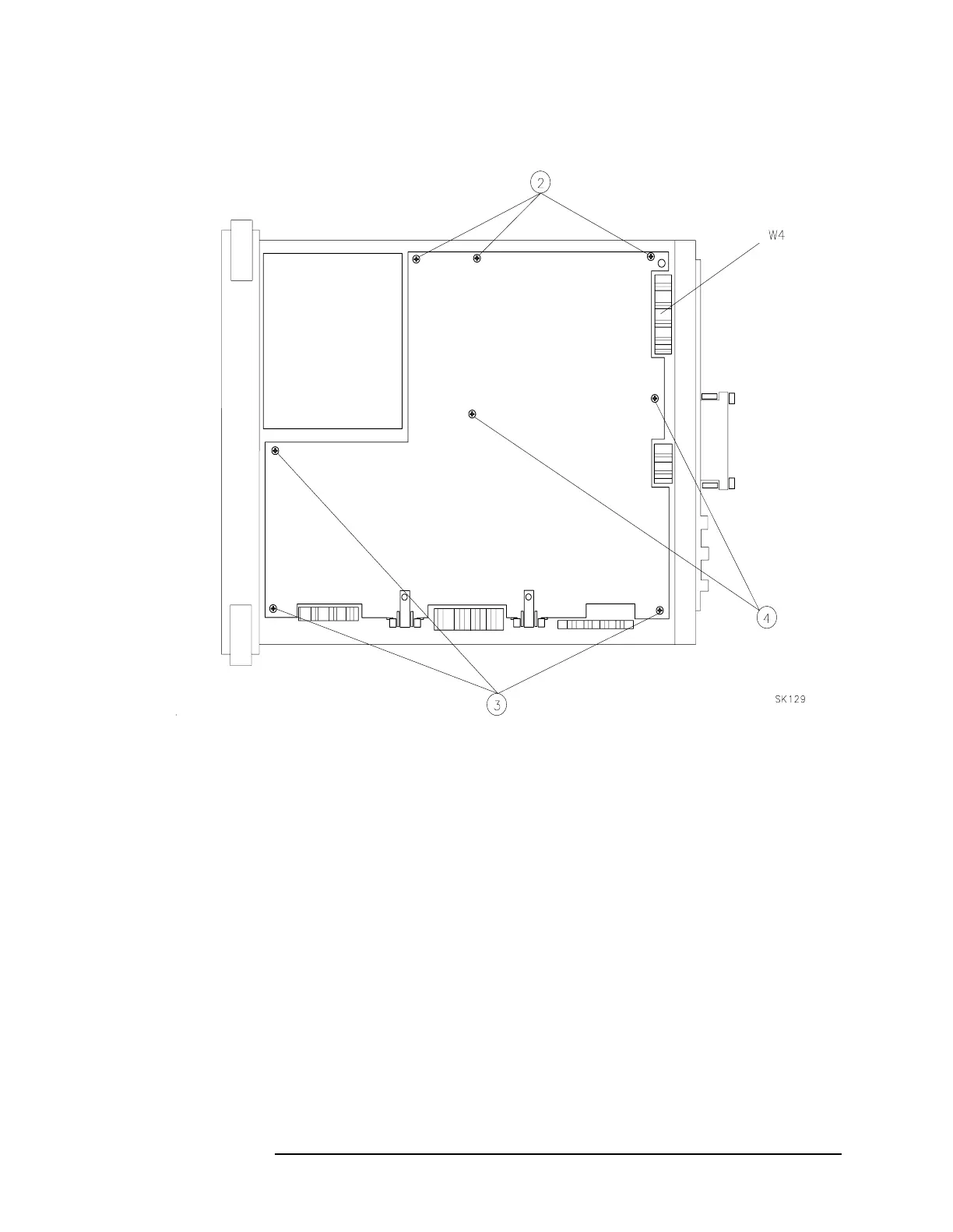

Figure 4-8 A2, A3, A4, and A5 Assembly Removal
Replacement
1. Place the spectrum analyzer on its right side on the work bench.
2. Attach the assembly being installed to the two chassis hinges with
two panhead screws.
3. Leave the assembly in the folded-out position and attach ribbon
cables W1 and W2.
4. Attach all cables to the assembly, as illustrated in Figure 4-9 on
page 204.
5. Locate the cable clip on the inside of the right side frame. Make sure
that the coaxial cables are routed properly on the clip as illustrated
inFigure4-12onpage206
