Agilent Technologies 8565EC Service Guide

204 Chapter4
Assembly Replacement
Procedure 5. A2, A3, A4, and A5 Assemblies
6. Lay the A2, A3, A4, and A5 assemblies flat against each other in the
folded-out position. Make sure that no cables become pinched
between the two assemblies.

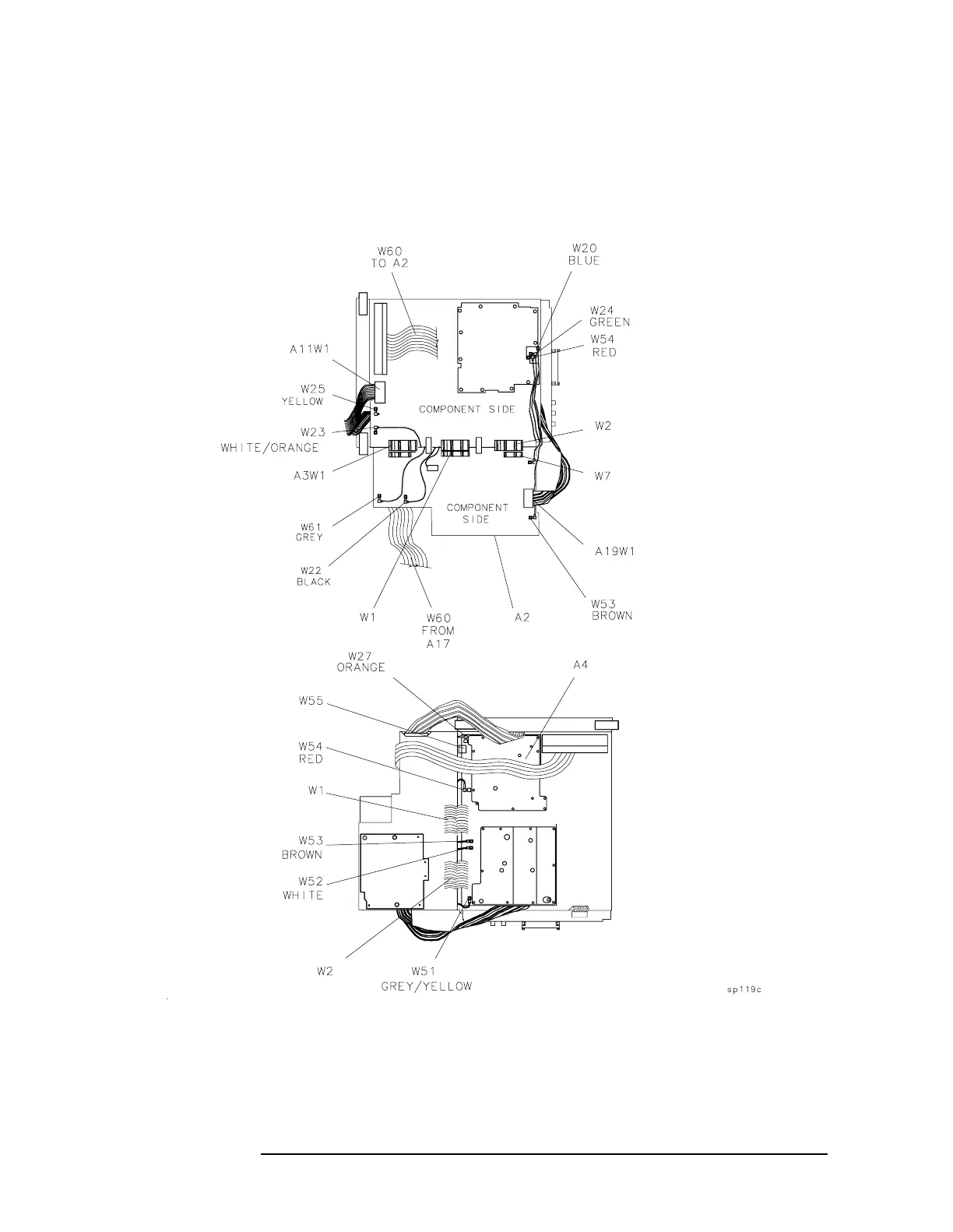

Figure 4-9Assembly Cables (1 of 3)
