EDIT PROGRAM - SINGLE
S3200XL Operator’s Manual - Version 1.00 Page 105
THE SECOND FILTERS

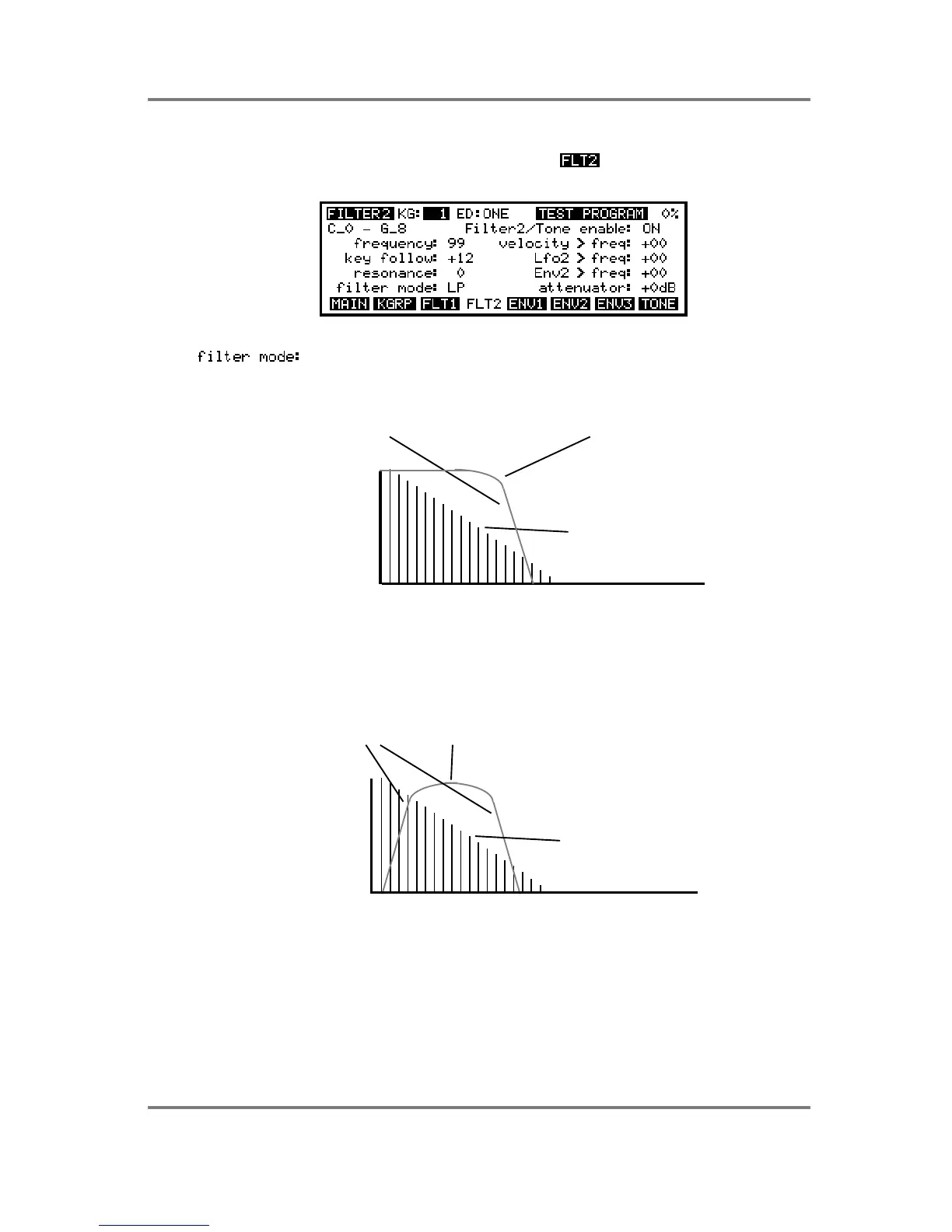

The second bank of filters is accessed by pressing . This will display the following
screen:
Essentially, this looks very similar to the Filter 1 page except you will notice the extra
parameter that selects these filters’ different modes. The second filter offers
four different types of filters: LOWPASS, BANDPASS and HIGH PASS plus a special EQ filter
selection. The lowpass filter we have already seen and offers this type of response graph:
HARMONICS
CUTOFF FREQUENCYROLL-OFF SLOPE
L
E
V
E
L
FREQUENCY
Here, high frequency components above the cutoff frequency are removed and only lower
frequency components will pass through the filter. When the resonance control is increased,
the area around the cutoff frequency is boosted to give synthesiser effects.
The band pass selection offer this type of response slope:
HARMONICS
CUTOFF FREQUENCYROLL-OFF SLOPE
L
E
V
E
L
FREQUENCY
Here, frequencies below the cutoff and above are removed. You may simultaneously remove
depth and top end using this selection and the result is a buzzy, thinner type of sound. As the
resonance amount is increased, so the width of the response slope gets narrower so that
individual harmonics are emphasised.
