DELAY AND ECHO EFFECTS
The next section in the effects allows you to set delay and echo effects. The delay line in the
multi-effects is dual channel allowing you to create ping pong and many other stereo delay
effects. It can also operate in a mono mode and this has the advantage of doubling the
available delay time. The echo/delay effects available are

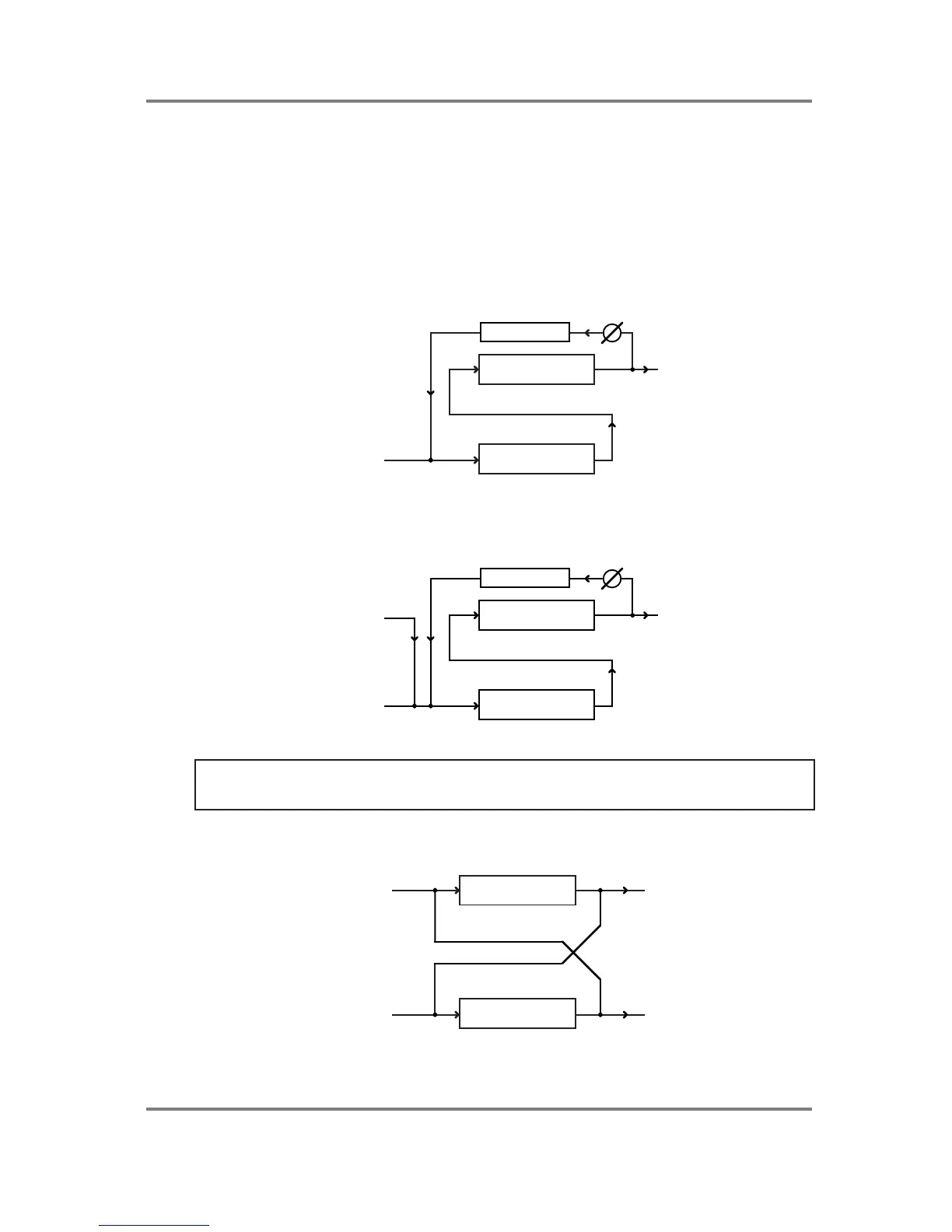

MONO LEFT This will create a mono echo effect and the signal is derived through the delay
line’s left input.
DELAY L
DELAY R
HF DAMP
FBK
LEFT IN
MONO L+R This creates mono echo and delay effects but derives its input signal from the
left and right inputs to the delay line.
DELAY L
DELAY R
HF DAMP
FBK
LEFT IN
RIGHT IN
NOTE: Because the stereo mod section passes through the echo section, any stereo mod
effects you create (i.e. chorus, flange, phase, rotary speaker or autopan/frequency mod
effects) will be ‘monofied’ when MONO LEFT or MONO L+R effects are selected.
XOVER L&R This is a ‘pseudo-stereo’ delay effect that uses the two delay lines the
feedback path of which crosses over:
DELAY RIGHT
DELAY LEFT
LEFT IN
RIGHT IN
This gives rise to many interesting panning echo effects.
