INTRODUCTION
Page 6 S3200XL Operator’s Manual - Version 1.00

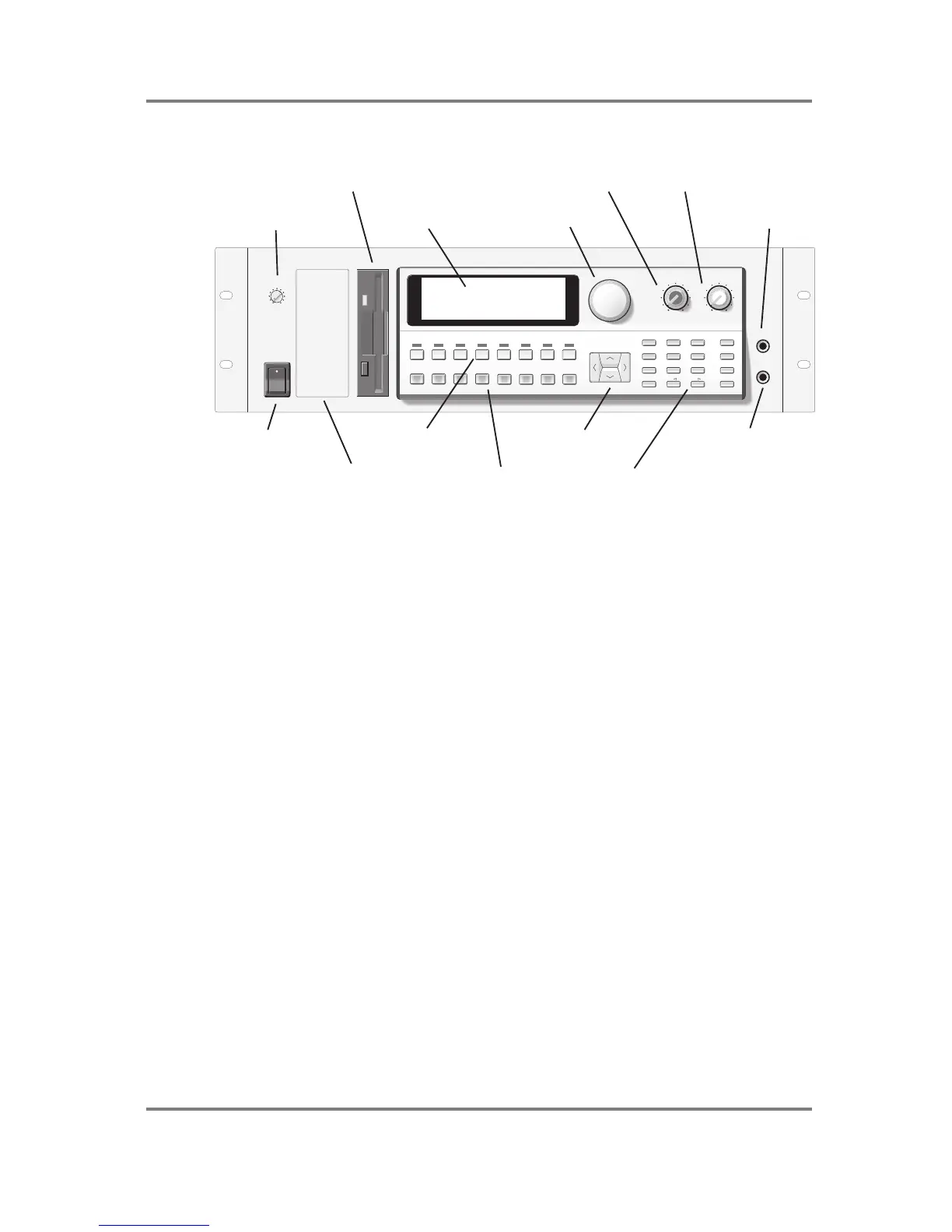

FRONT PANEL
$
MIDI DIGITAL STEREO SAMPLER
s3200xl
POWER
ON
OFF
PHONES
ENT/PLAY
NAME
JUMP/.
MARK/#
1/
W
0/
Z
8/
R
5/
U
2/
X
9/
S
6/
V
3/
Y
7/
Q
4/
T
-/+/
F1 F2 F3 F4 F5 F6 F7 F8
CURSOR
REC LEVEL
MIN MAX
MAIN VOLUME
MIN MAX
FOOT SW
mo
DISK DRIVE
( 3.5INCH )
HIGH SPEED
DIGITAL
SIGNAL
PROCESSOR
DATA
SCREEN FUNCTION
F1/
A
F2/
B
F3/
C
F4/
D
F5/
E
F6/
F
F7/
G
F8/
H
I
SINGLE/ MULTI/
J
SAMPLE/
K
EFFECTS/
L
EDIT/
MN
GLOBAL/ SAVE/
O
LOAD/
P
DISPLAY
CONTRAST
PUSH ON/OFF
DISPLAY CONTRAST
FLOPPY DISK DRIVE
LCD DATA ENCODER
RECORD LEVEL MAIN VOLUME
POWER SWITCH
MO DRIVE SLOT
SOFT KEYS
MODE KEYS
CURSOR KEYS
NUMERIC KEYPAD
MARK/JUMP, NAME, ENT KEYS
HEADPHONE
FOOTSWITCH
MODE KEYS Selects the operating mode for the sampler.
‘SOFT’ KEYS These select functions displayed on the LCD above. They
have no fixed function but change according to the page
currently displayed on the screen.
LCD The 40 x 8 character display shows parameters and values
and displays the ‘soft’ keys’ function and graphic display of
waveforms for sample editing, etc..
CURSOR KEYS This block of keys moves the cursor up, down and left and
right around the screen.
DATA ENCODER Allows you to enter data values and for scrolling through lists,
etc..
NUMERIC KEYPAD This is used to enter data numerically.
MARK/JUMP These keys allow you to mark two functions and switch
between them using the JUMP key. In this way, it is quick and
easy to enter data even across two different screens.
NAME KEY This takes you the ‘naming mode’ where you may name
samples, programs, effects, etc..
ENT/PLAY KEY Allows you to play a sound without the need for a MIDI
controller to be connected.
RECORD LEVEL Sets the record level for the analogue inputs.
MAIN VOLUME The MAIN VOLUME control sets the main output level of the
L/R stereo outputs (this control does not affect the level of
