INTRODUCTION
S3200XL Operator’s Manual - Version 1.00 Page 7
the signal appearing at the individual outputs or digital
output).
POWER SWITCH Applies power to the S3200XL.
PHONES This stereo jack socket allows you to monitor the L/R (stereo)
output of the S3200XL through stereo headphones. The
level is regulated using the MAIN VOLUME control (see
above).

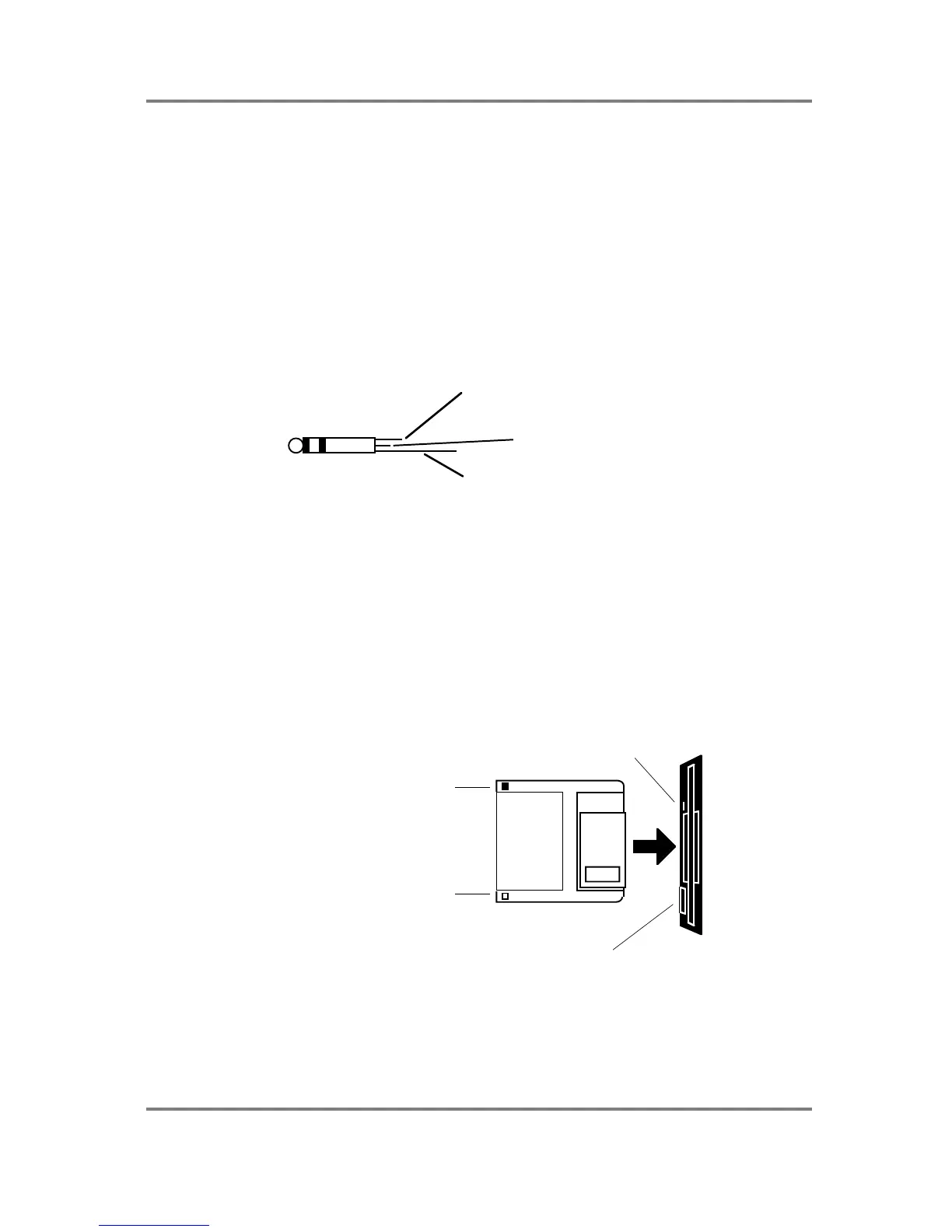

FOOTSWITCH The FOOTSWITCH input is actually two switch inputs using a
stereo jack. One input is used for sustain and for initiating
sampling (see later) and the other is used for the soft pedal
(MIDI controller 67). The wiring of the plug is as follows:
TIP - SUSTAIN/SAMPLING
RING - SOFT PEDAL
GROUND
Both require a press-to-open type of switch.
DISPLAY CONTRAST Sets the viewing angle for the LCD. You will note that
pressing this control in switches off the LCD’s backlight thus
preserving the life of the LCD (think of it like a ‘screen saver’
on a computer.
MO DRIVE SLOT You may install a 3.5” Sony 650Mbyte Magneto Optical (MO)
drive here (please consult your dealer about this option).
FLOPPY DISK DRIVE The 3.5 inch floppy disk drive will accept high density and low
density disks. Disks are inserted into the drive thus:
DISK ACTIVITY LED
DISK EJECT BUTTON
WRITE PROTECT TAB
HIGH DENSITY
DETECTION TAB
The label should be facing towards the screen and panel
controls when it is inserted (actually, it is physically impossible
to insert disks the wrong way round without using an extreme
amount of brute force!).
