GLOBAL
Page 234 S3200XL Operator’s Manual - Version 1.00

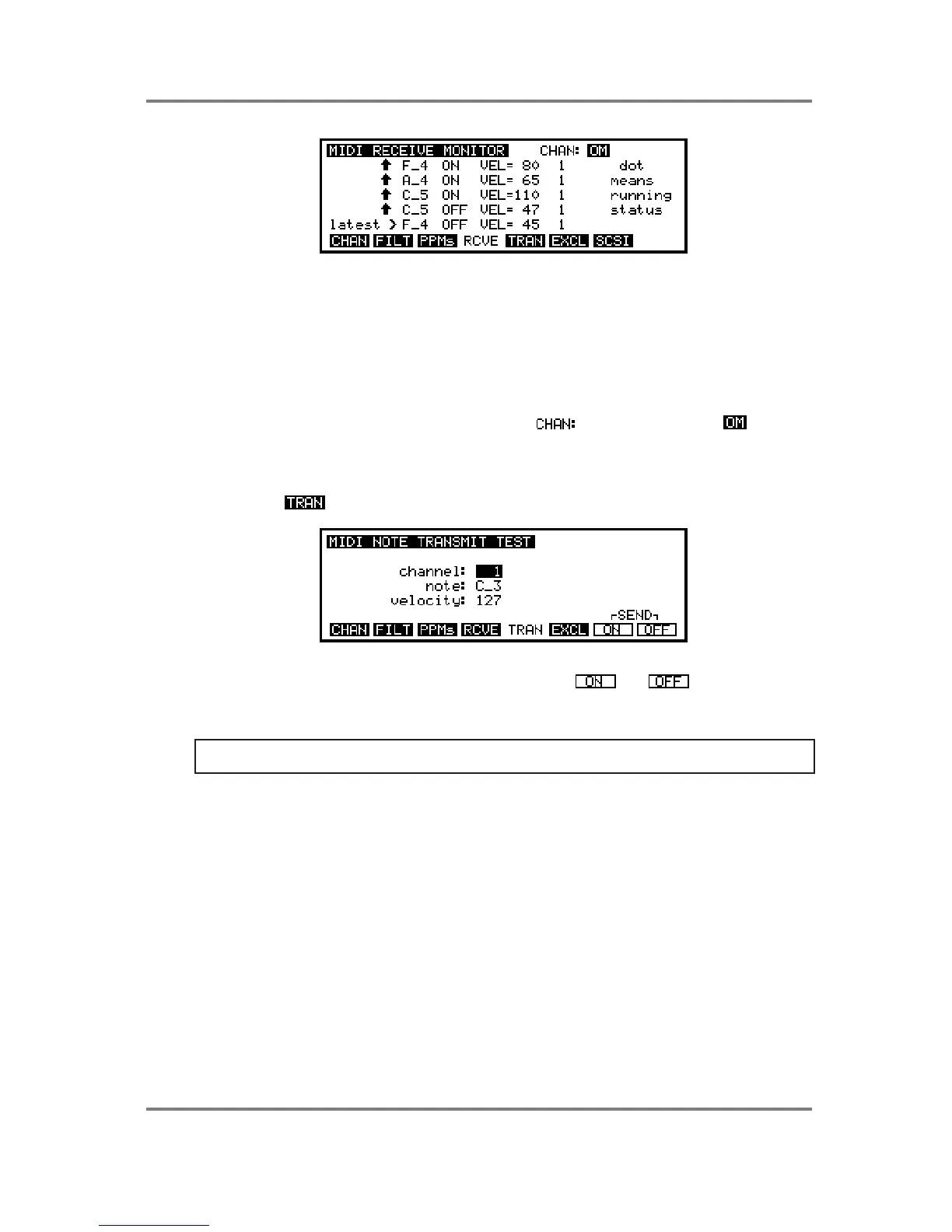

Here you will see a constantly changing display as notes are received. If any performance
controls are used such as mod wheel or pressure, these too will be shown.
If the information is not displayed on this monitor, the information is not reaching the S3200XL.
Check your connections or the output channel of the transmitting equipment. If the
information appears to be correct, but no sound or unexpected sounds are being produced,
then the fault may lie in the MIDI setting of the program(s). You may discover that the piano
track of the sequencer is playing the drum samples, for example.
You may select to view particular channels using the : field. This defaults to (short for
OMNI) so you can view all channels but you may select individual channels 1-16 if you only wish
to monitor a specific channel.
TRANSMIT TEST PAGE - SETTING THE ENT/PLAY KEY
Pressing the soft key (F5) will display this screen.
In the TRANS page, you can produce a test transmission of a MIDI note, and set the channel,
key and velocity of the note to be transmitted, using the and keys (F7 and F8).
This key value and velocity will also be used by the key when testing samples and programs
using the ENT/PLAY key.
NOTE: When in EDIT SAMPLE mode, the raw sample is always played at its base pitch (i.e.
the pitch was sampled at) and not at the note value set here.
