EFFECTS
S3200XL Operator’s Manual - Version 1.00 Page 165

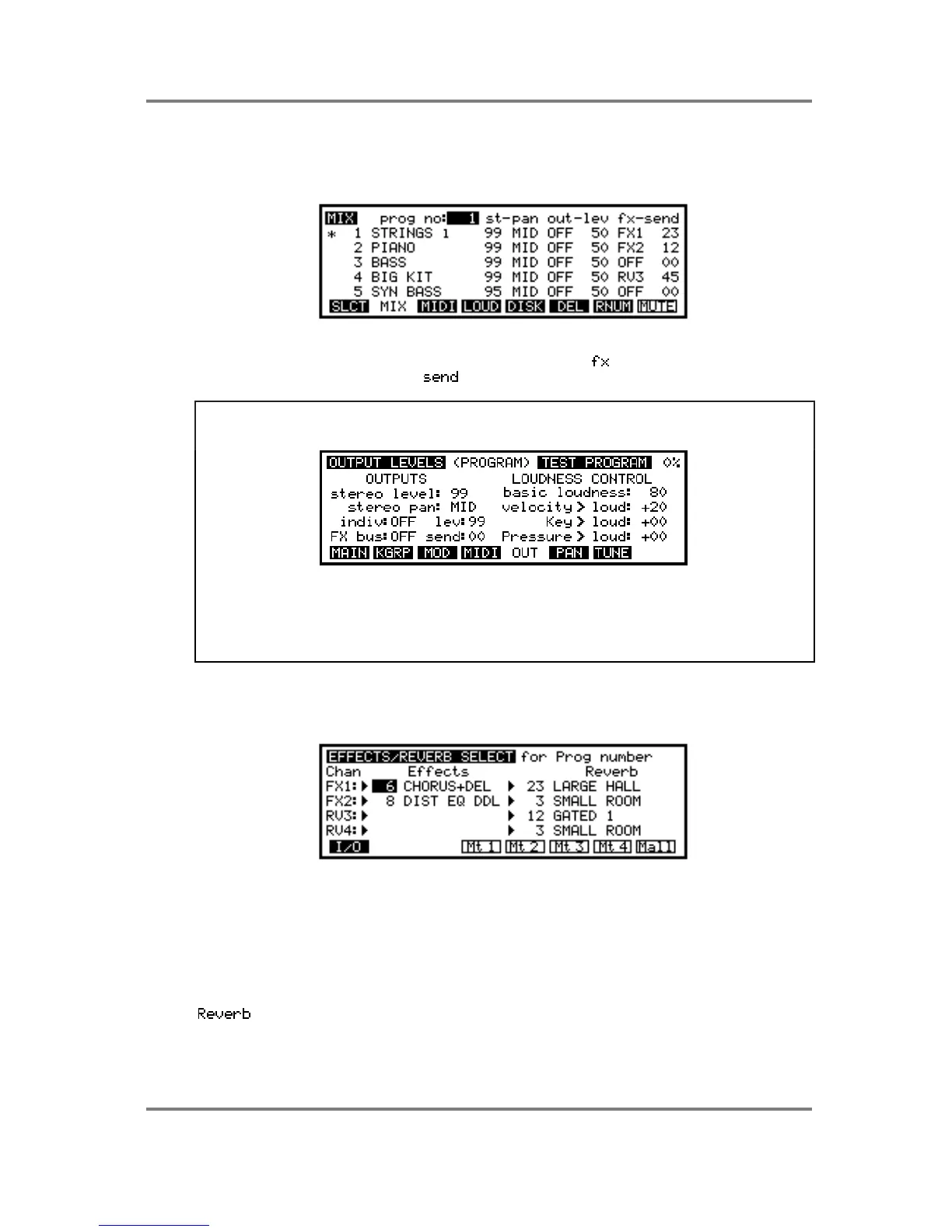

ASSIGNING EFFECTS TO SINGLE PROGRAMS
In the SINGLE mode, you can assign the program to one of the effects channels. The easiest
way to do this is to use the MIX page in SINGLE:
Here, you see a list of the programs in memory. You may route them to the effects simply by
selecting the effects channel FX1, FX2, RV3 or RV4 in the column. The amount of effect
applied to the program is set in the column.
NOTE: You may also select the effects channel you want the program routed to in EDIT
PROGRAM in the OUTPUTS pages:
You may find the MIX page slightly easier to use, especially when setting effects for several
programs at once.
Also, if you are using the ‘old Akai’ method for creating multi-timbral setups, the MIX page is
probably the best place to select your effects routings.
Once you have selected the channel the program is routed to and set a send level, press the
EFFECTS mode key to select the effects you want to assign to the program. You will see this
screen:
This shows the selected effects files for all four channels. To select a different effects channel
for the program (for example, you may have routed the program to FX2), press CURSOR
DOWN to get to FX2 and use the DATA wheel to select that channel’s effect and reverb
preset.
The effect preset will bring with it a reverb preset when selected (in the above screen example,
selecting effect #6, CHORUS+DEL will automatically select reverb preset 23, LARGE HALL,
the reverb ‘associated’ with that effect preset). To change that, move the cursor across to the
section of the screen and select a reverb preset as appropriate.
