Allen-Bradley ControlLogix 1756-ENBT User Manual

Publication 1756-UM050A-EN-P - December 2001
Interfacing with FLEX I/O 8-9

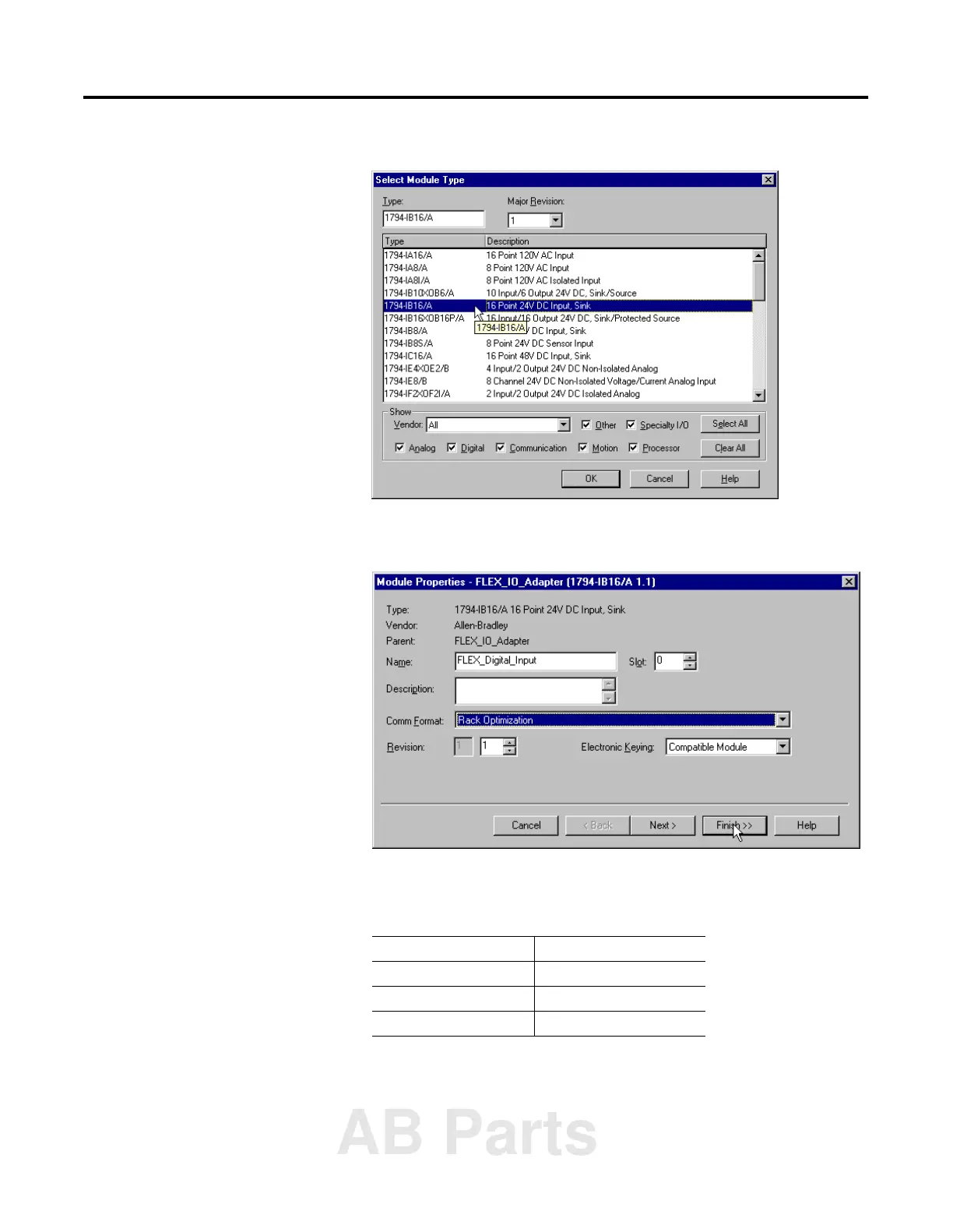

The Select Module Type window will open.
2. Select the 1794-IB16/A digital input module from the list and click
on OK. The Module Properties window will open.
3. Enter or select the following parameters (the values we used are
listed in the table):
4. Click on the Finish button to save the configuration.
Name FLEX_Digital_Input
Slot 0
Comm Format Rack Optimization
Electronic Keying Compatible Module
