Publication 1756-UM050A-EN-P - December 2001
D-2 Example Network Configurations
Small System Example

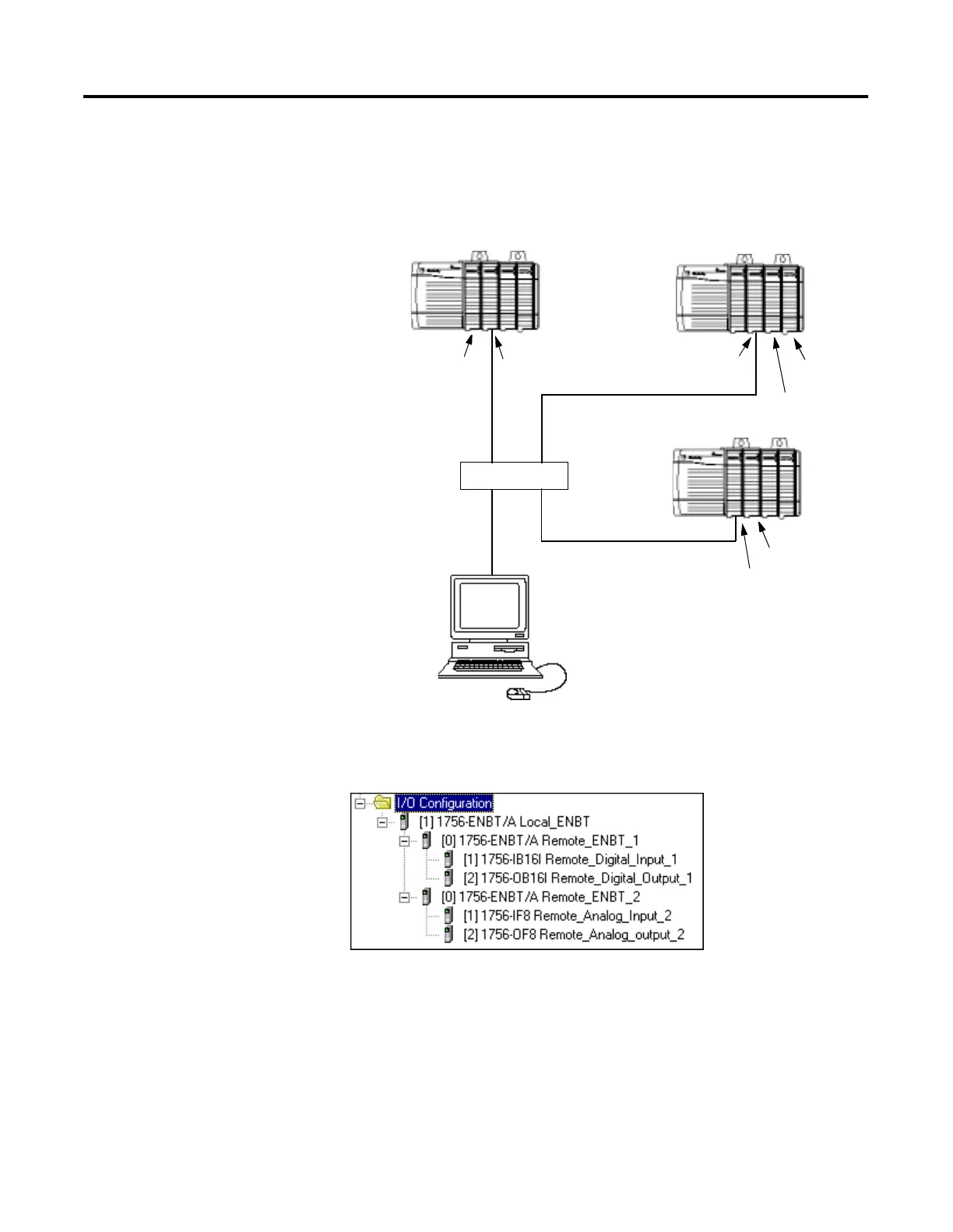

An example small system is shown below, consisting of a local chassis
with a Logix 5550 controller and a 1756-ENBT module serving as a
network scanner, and two remote chassis with 1756-ENBT modules
serving as adaptors for the I/O modules in those chassis.
The RSLogix 5000 I/O Configuration for this network is shown in the
following figure.
Logix5550
1756-ENBT
1756-ENBT
Local
Chassis
Remote
Chassis
PC Workstation
Slot 0 1
Slot 1 2 3
1756-IB16
Digital Input
1756-OB16I
Digital Output
Controller
#1
Remote
Chassis
#2
1756-ENBT
1756-OF6VI
Analog Output
Slot 0 1
Ethernet Switch
